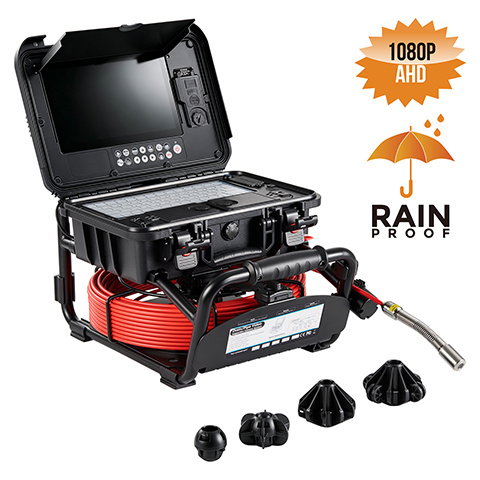

OMTools Fully waterproof sewer inspection camera, featuring a 10-inch LCD screen with HD resolution, a 40-metre cable with a diameter of 6.8 mm, and a self-levelling camera head with a diameter of 23 mm, including a 512 Hz probe
- Brand:
- OMTools
- Article number:
- 1440041
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€2.755,00
Excl. tax
Fully waterproof sewer inspection camera, featuring a 10-inch LCD screen with HD resolution, a 40-metre cable with a diameter of 6.8 mm, and a self-levelling camera head with a diameter of 23 mm, including a 512 Hz probe
Sewer inspection camera, fully waterproof, 10" LCD screen
40 metres Ø6.8 mm cable and a 23Ø mm self-levelling camera head with a 512 Hz probe

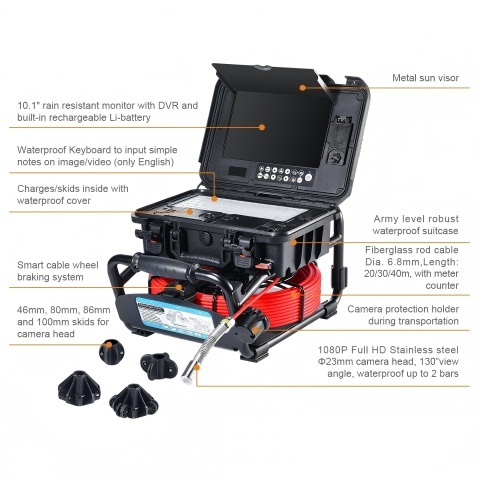

Key features of this new pipe inspection camera:
1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5. The keyboard is very easy to operate, like a laptop.
All-in-One Video pipe inspection camera with 40m fiberglass cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 120° wide vision angle
> Stainless steel camera head, IP68 waterproof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Two plastic guides for camera head, Φ46mm & 80mm
> 10” LCD color monitor, with image rotate button
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> With microphone for local audio recording
> Rechargeable battery lasts up to 6 hours
> On-Screen date and time
> 40m fiberglass φ 6,8 mm push rod
> Rotatable cable reel mounted in case for convenient operation
> Ability to go through 90°bends in Φ50mm pipes
> With smart braking system
> With on-screen distance counter
> With Keyboard for text input (English)

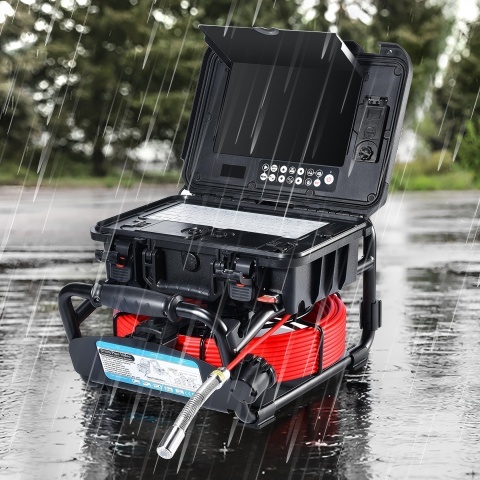

> Whole system waterproof
Specifications:
Camera Head
Camera Size: Φ23mm×45mm
Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
Sensor: 1/3" Sony, 480 TV-Line
resolution: 1920 x1080
View Angle: 130°
Transmitter: 512hz built-in
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉

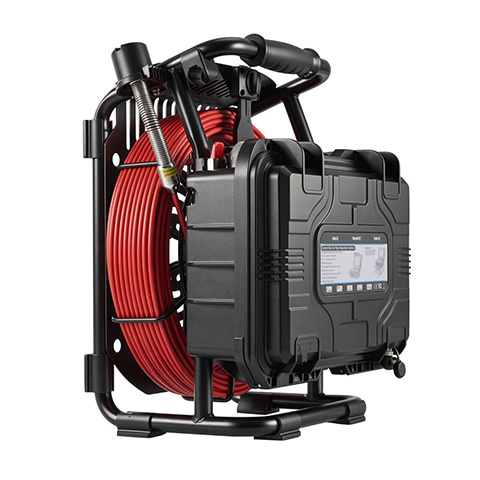

Cable Wheel
40M fiberglass rod cable with on-screen distance counter
Dia. of push cable: 6.8mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case

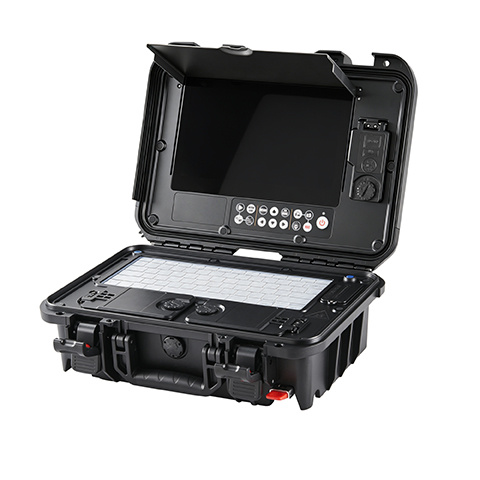

LCD Monitor
Screen: 10-inch 16:9 Super bright HD color LCD screen
Resolution: 1024x600 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: AHD 1080P / CVBS D1
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support SD memory card up to 64GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
Power Input: DC 6V-12V
Battery Capacity: 7.4V 6400mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours
What’s included?
1 x 23mm stainless steel camera head, self-levelling with a 512Hz probe
1 x reel with 40 metres of 6.8 Ø push rope
1 x battery pack
1 x remote control
1 x screw drive
1 x power adapte
1 x car charger
1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17.1kg (slight different for 20m, 30m unit)
- Carton Measurement: 55 x 44x 35cm
