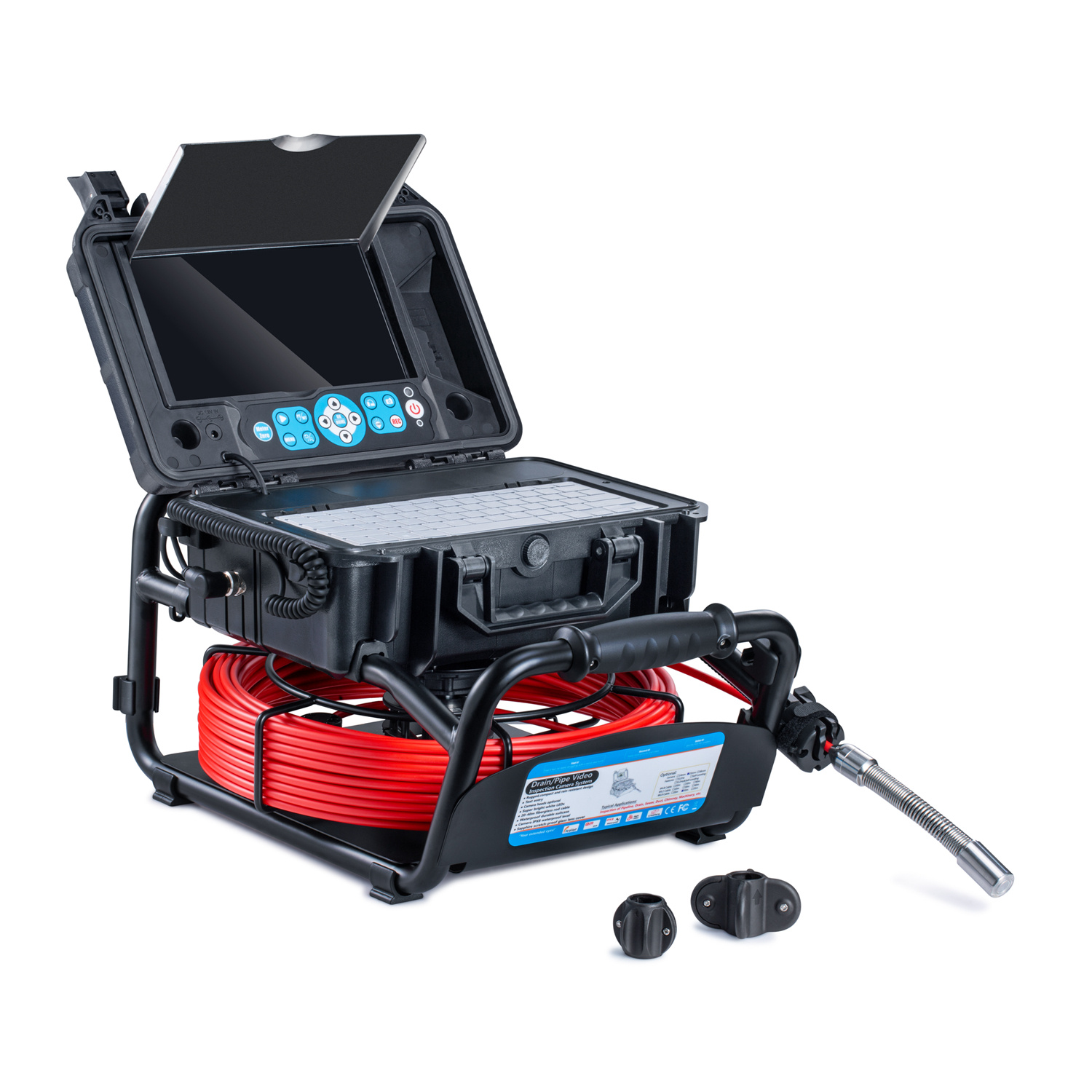

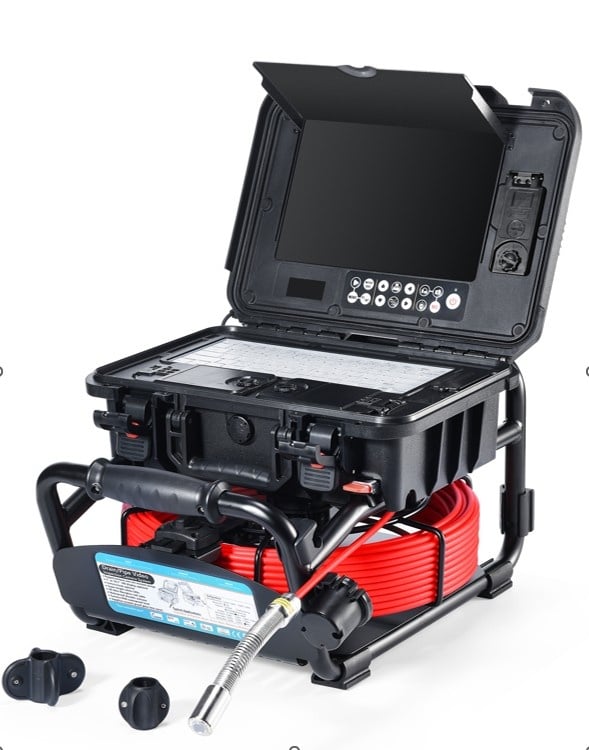

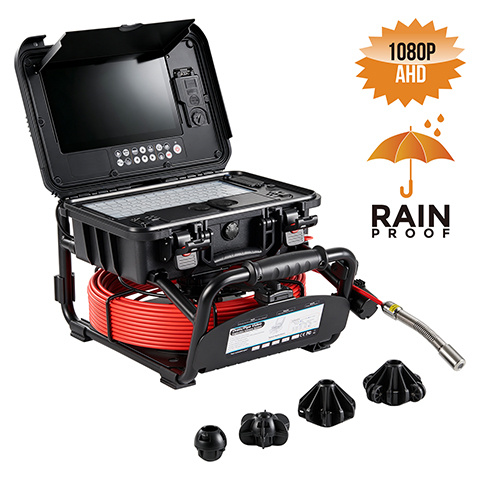

OMTools Sewer inspection camera with 40 meter cable and self-leveling 23 Ømm camera head
- Brand:
- OMTools
- Article number:
- 1440051
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€2.595,00
Excl. tax
Sewer inspection camera with 40 meter Ø6.8mm cable and self-leveling camera head
Sewer inspection camera with 40 meter cable and
self-leveling camera head

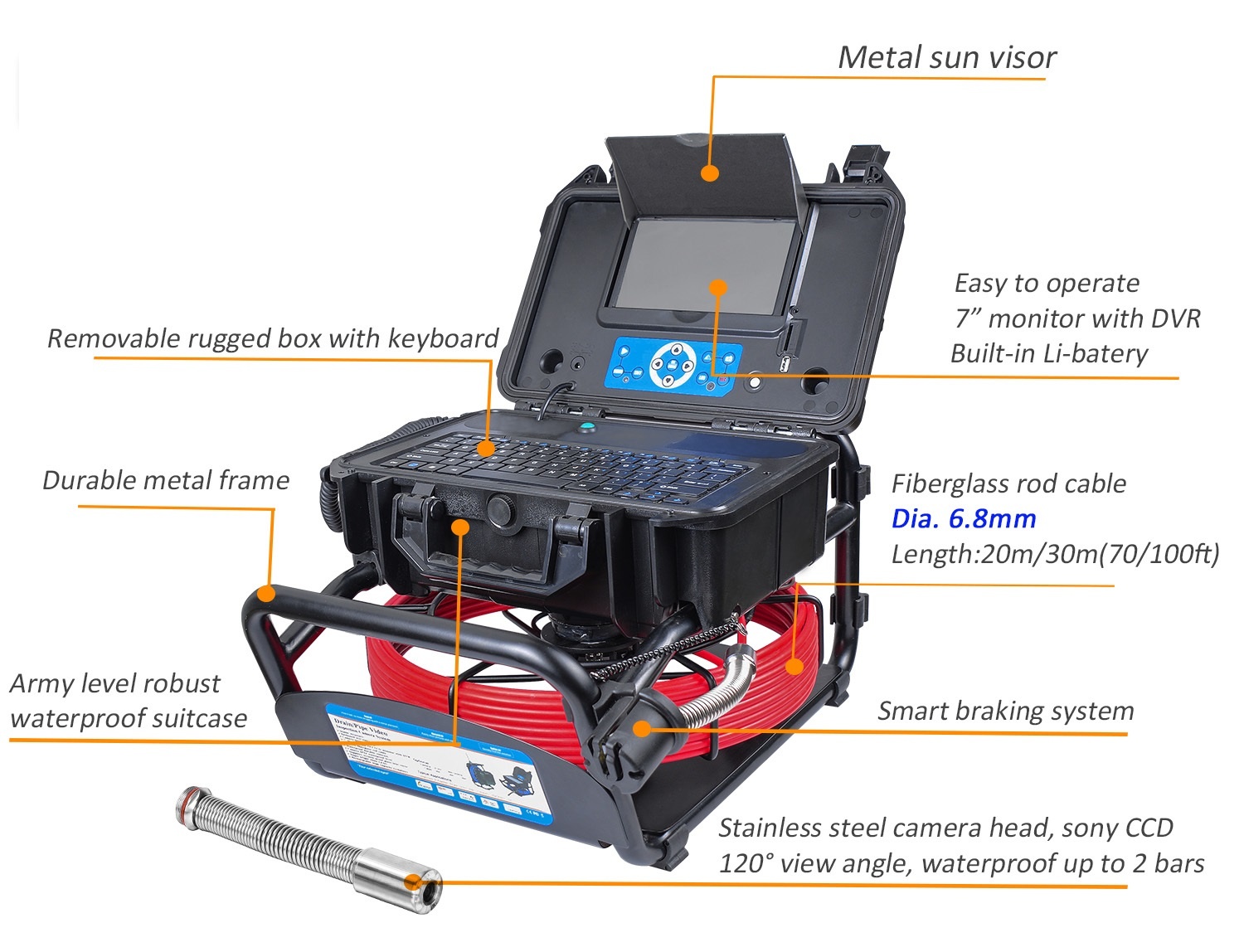

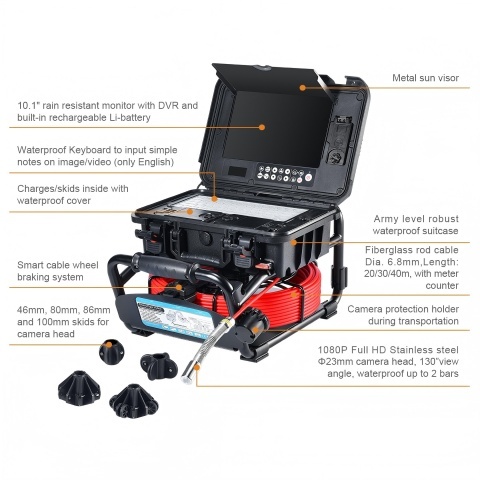

Key features of this new pipe inspection camera:
1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5. The keyboard is very easy to operate, like a laptop.
All-in-One Video pipe inspection camera with 30m fiberglass cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 120° wide vision angle
> Stainless steel camera head, IP68 waterproof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Two plastic guides for camera head, Φ46mm & 80mm
> 7” LCD color monitor, with image rotate button
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> With microphone for local audio recording
> Rechargeable battery lasts up to 6 hours
> On-Screen date and time
> 20, 30 or 40m fiberglass φ5.2mm push rod

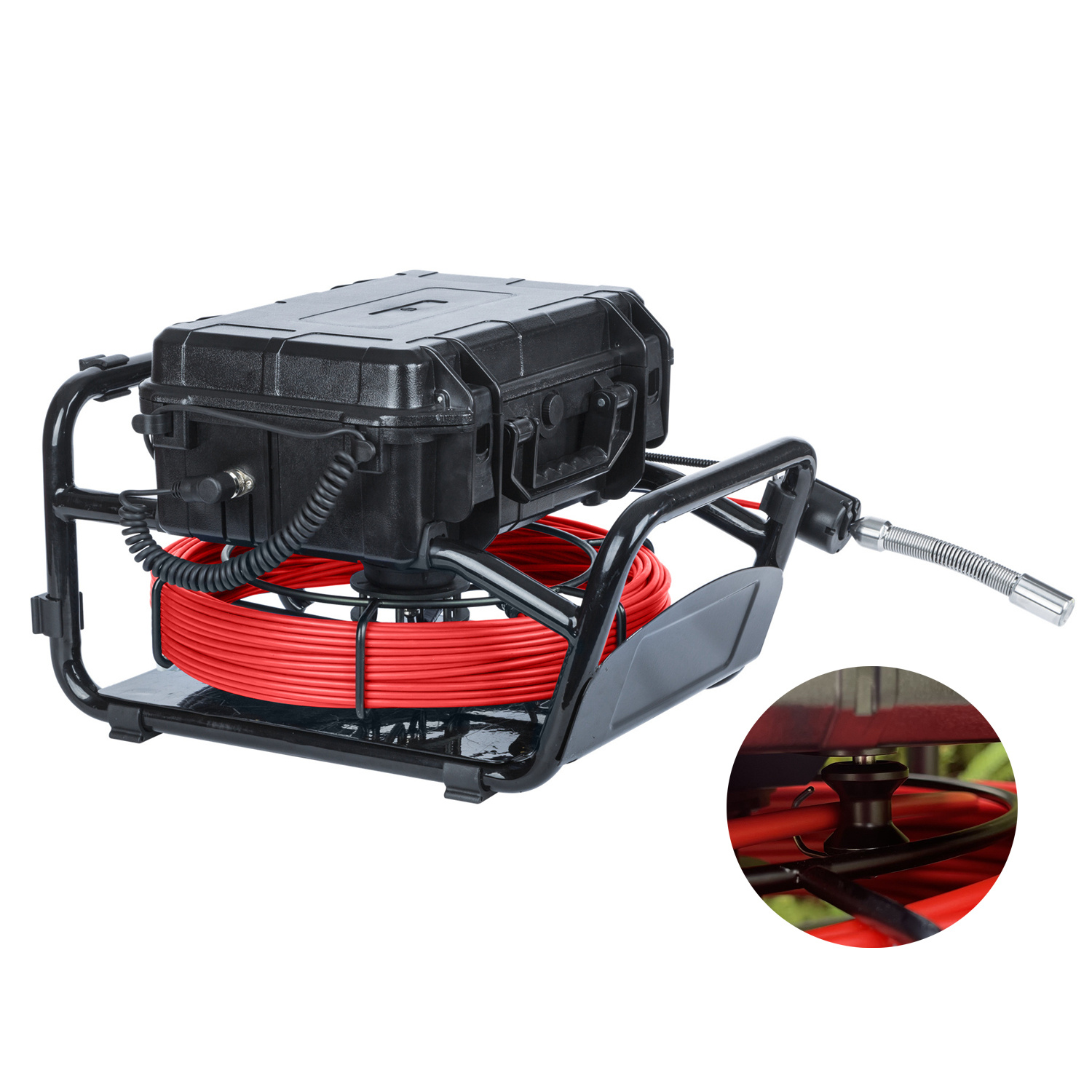

> Rotatable cable reel mounted in case for convenient operation
> Ability to go through 90°bends in Φ45mm pipes
> With smart braking system
> With on-screen distance counter
> With Keyboard for text input (English)
> Whole system waterproof (box closed)
Optional features/parts:
- Camera head with built-in 512hz sonde
- Self-leveling feature (same size)

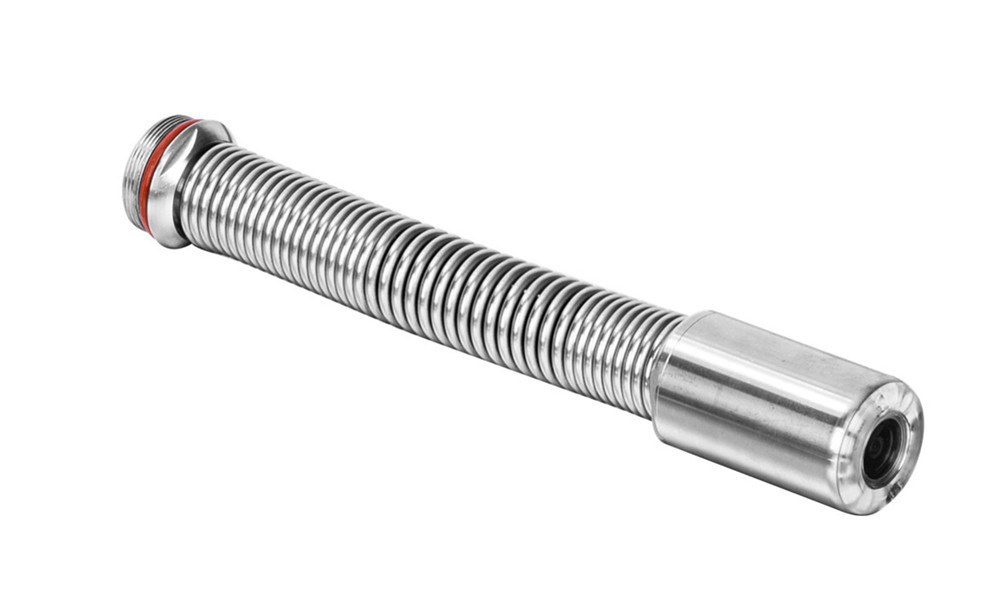

- Long spring camera head for better flexibility while passing through 90 degree bends
- 38mm camera head for using in larger pipes
What’s included?
- 1 x 23mm Camera head
- 1 x 40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17.1kg (slight different for 20m, 30m unit)
- Carton Measurement: 55 x 44x 35cm
Specifications:
Camera Head
Camera Size: Φ23mm×45mm
Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
Sensor: 1/3" Sony, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Transmitter: 512hz built-in(selectable)
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉

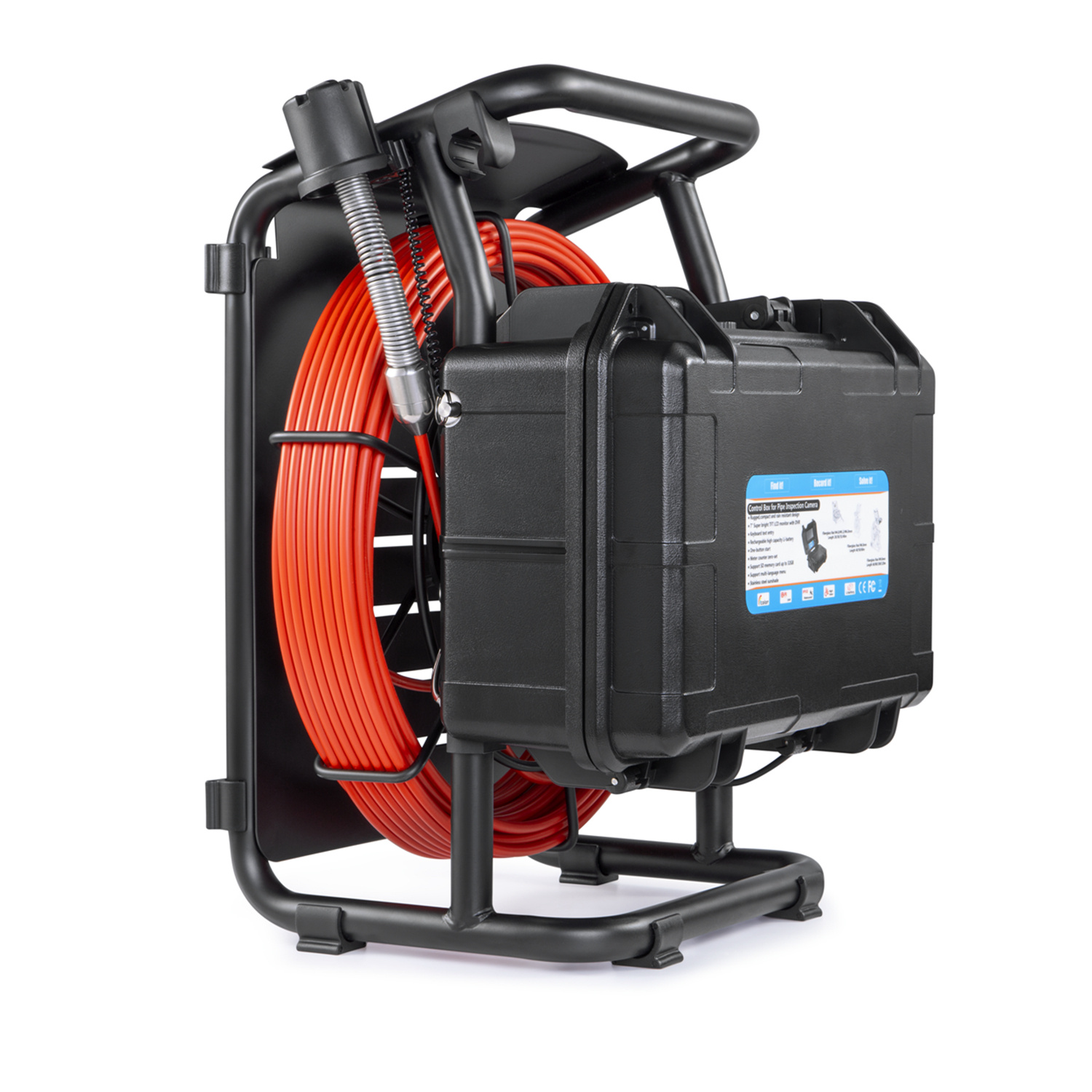

Cable Wheel
20/30/40M fiberglass rod cable with on-screen distance counter
Dia. of push cable: 6.8mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case
LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 5200mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours
