OMTools Sewer inspection camera with a 10" HD screen, 40-meter Ø6.8mm cable, and a 28mm pan-and-tilt camera head
- Brand:
- OMTools
- Article number:
- 1440039
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€5.295,00
Excl. tax

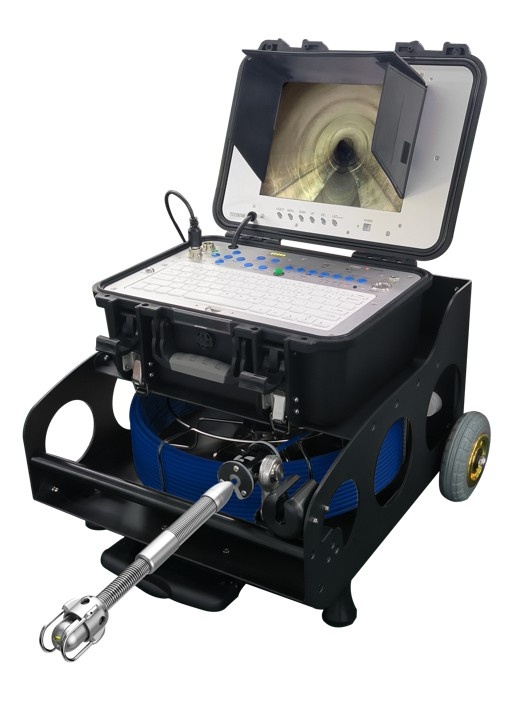

Sewer inspection camera with a 10" HD screen, 40-meter Ø6.8mm cable, and a 28mm pan-and-tilt camera head
Sewer inspection camera with a 40-metre Ø6.8mm cable and
a 28mm pan-and-tilt camera head and a 10-inch LCD screen

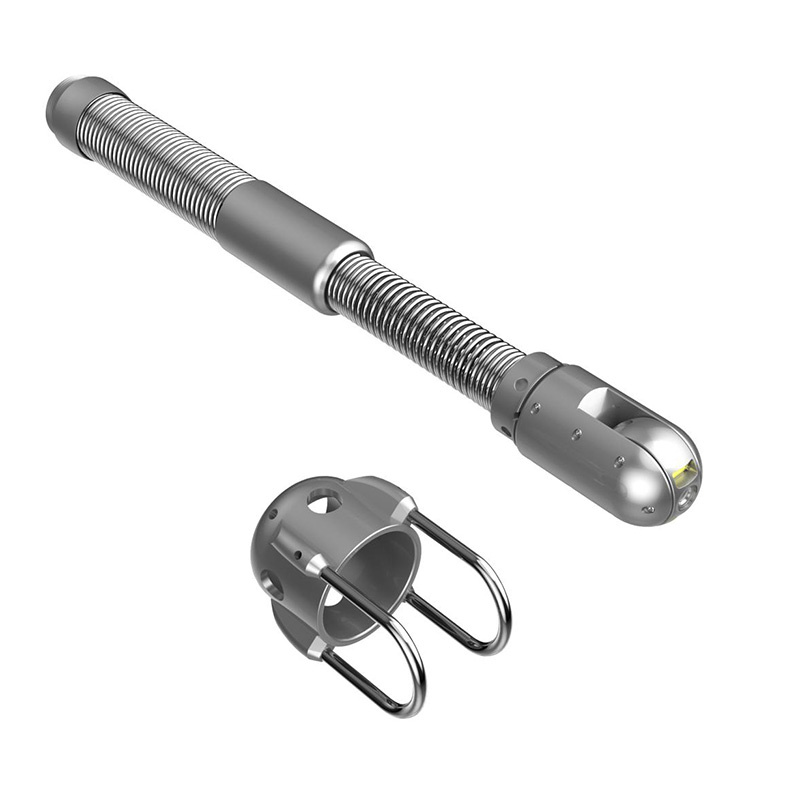

The 28mm camera head has a pan and tilt function, allowing the image to be rotated in all directions, both up and down and from left to right. The pan and tilt camera head is equipped with a 512Hz probe for detection using a cable detector
The camera is also suitable for inspecting air conditioning ducts, smoke extraction ducts, etc.
Key features of this new pipe inspection camera:
1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5. The keyboard is very easy to operate, like a laptop.
All-in-One Video pipe inspection camera with 30m fiberglass cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 120° wide vision angle
> Stainless steel camera head, IP68 waterproof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 28 mm
> Two plastic guides for camera head, Φ46mm & 80mm
> 7” LCD color monitor, with image rotate button
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> With microphone for local audio recording
> Rechargeable battery lasts up to 6 hours
> On-Screen date and time
> 20, 30 or 40m fiberglass φ5.2mm push rod

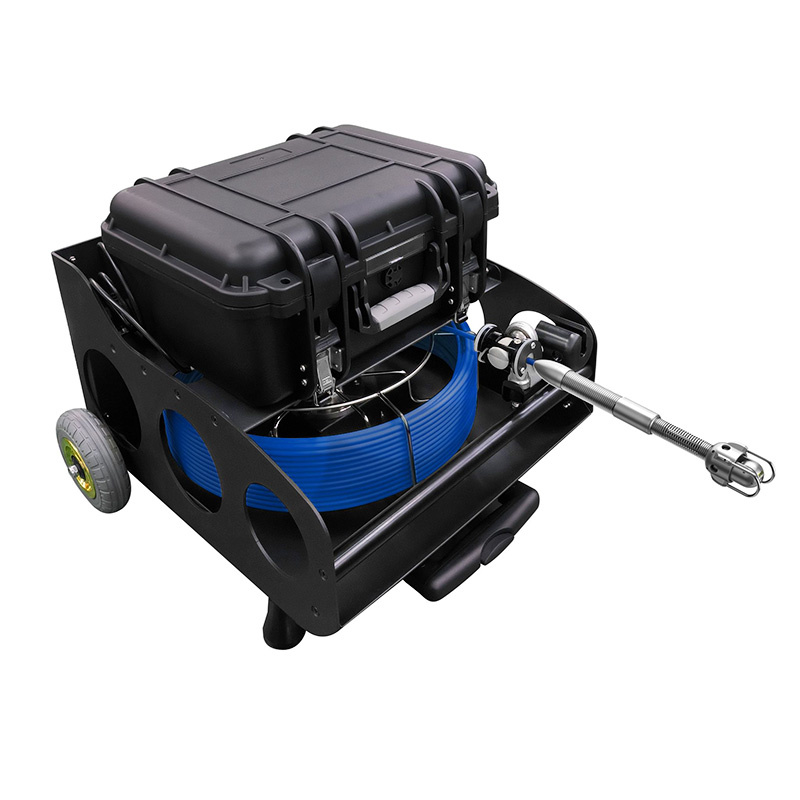

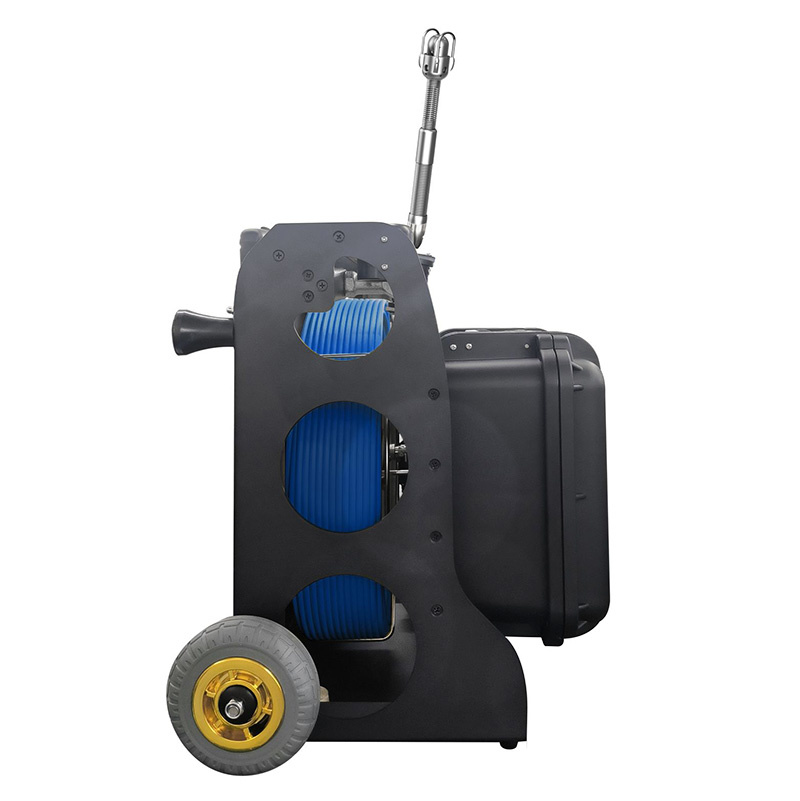

> Rotatable cable reel mounted in case for convenient operation
> Ability to go through 90°bends in Φ45mm pipes
> With smart braking system
> With on-screen distance counter
> With Keyboard for text input (English)
> Whole system waterproof (box closed)
Optional features/parts:
- Camera head with built-in 512hz sonde
- Self-leveling feature (same size)
- Long spring camera head for better flexibility while passing through 90 degree bends
- 38mm camera head for using in larger pipes
What’s included?
- 1 x 28mm Camera head
- 1 x 40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17.1kg (slight different for 20m, 30m unit)
- Carton Measurement: 55 x 44x 35cm
Specifications:
Camera Head
Camera Size: Φ23mm×45mm
Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
Sensor: 1/3" Sony, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Transmitter: 512hz built-in(selectable)
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
20/30/40M fiberglass rod cable with on-screen distance counter
Dia. of push cable: 6.8mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case
LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 5200mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours
