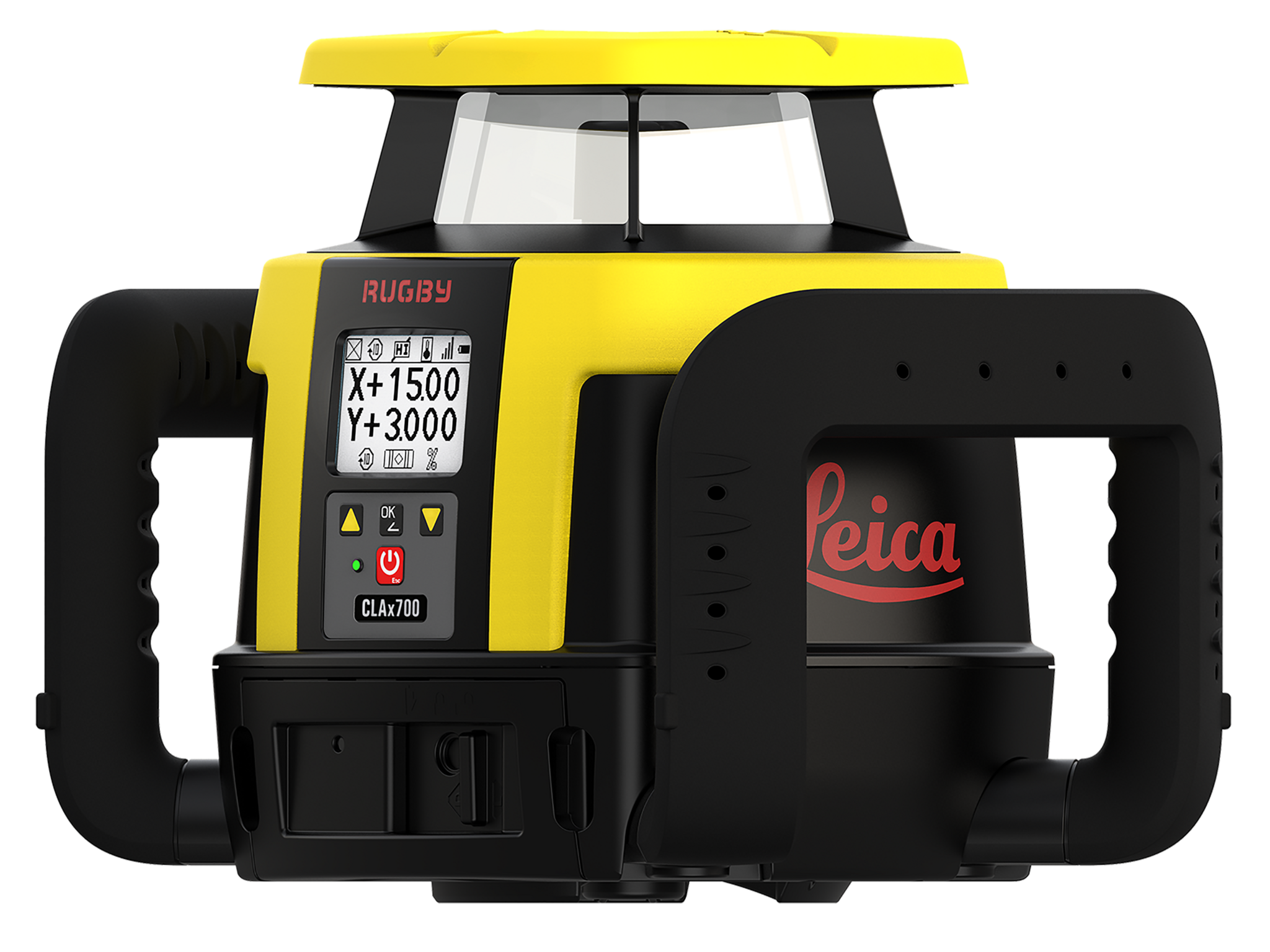

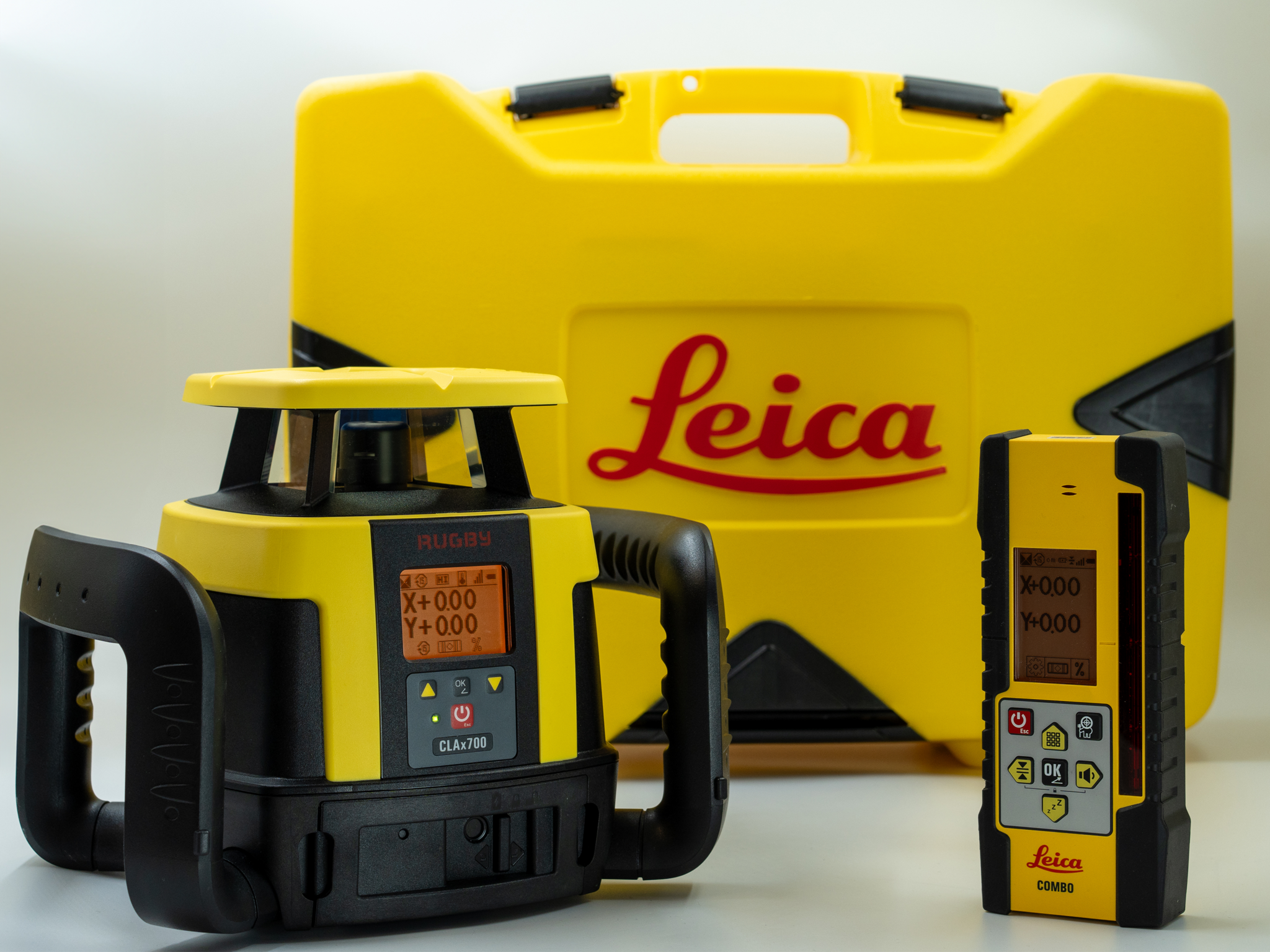

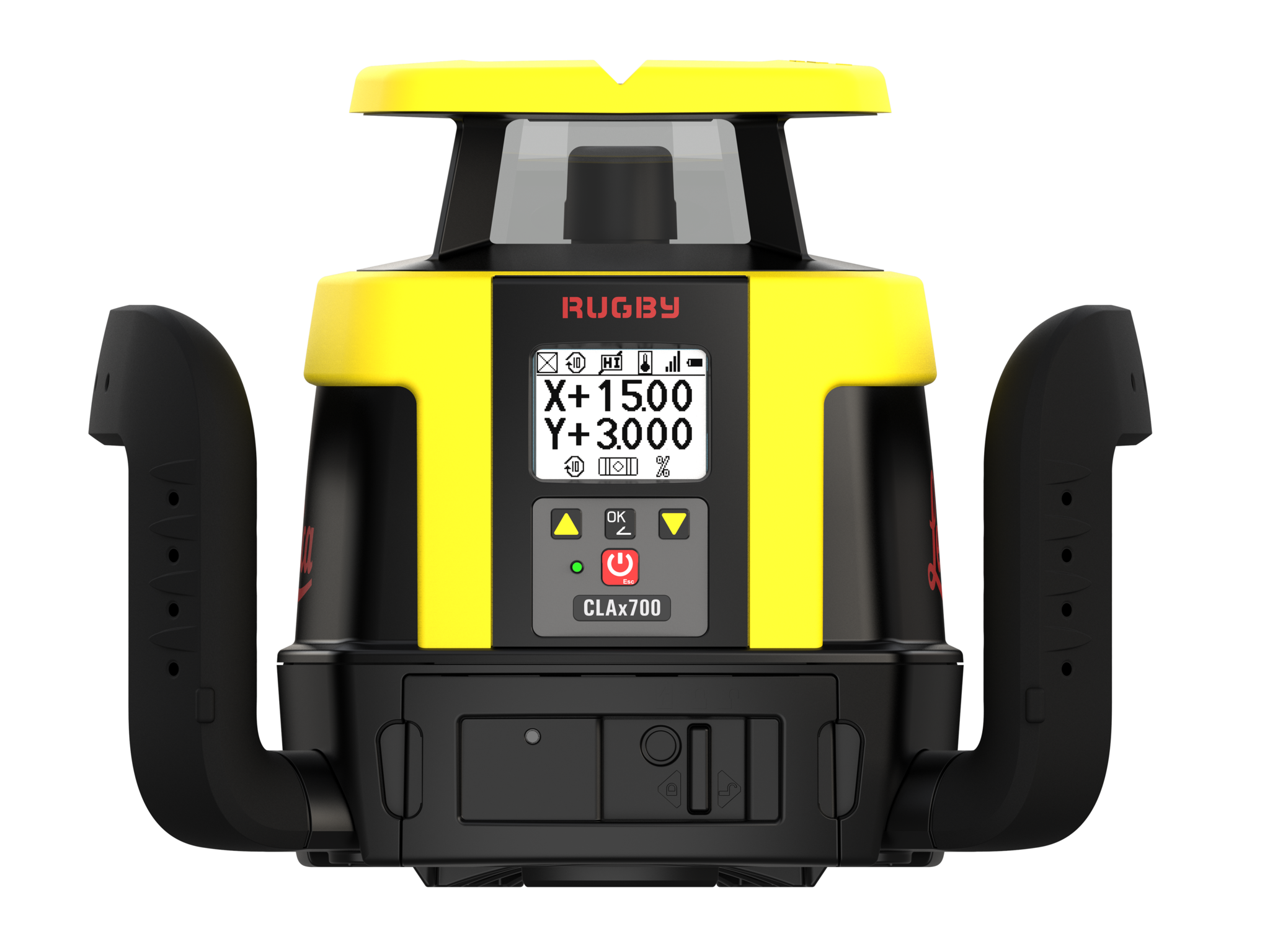

Leica Rugby CLAx700

NEW Leica Rugby CLAx700

The right choice for every application in the field

With its unique ability to adapt to the needs of the application at hand through software upgrades, the Leica Rugby CLA is the first upgradable laser for maximum productivity and performance in the field. Its expansion options allow you to take advantage of its unrivalled performance in all forms of levelling, alignment and squaring: a true all-rounder.

(2-year drop warranty)

The Leica Rugby CLH and CLA series is built for rough construction. The quality of this robust construction laser is so good that Leica can offer a fall guarantee on the entire interior, which means that if the laser falls apart completely, Leica will replace the levelling mechanism and interior free of charge, so you only have to pay for the housing or battery, etc. Leica also offers a lifetime warranty on material and manufacturing defects.

(5-year warranty)

The Leica Rugby CLA series can easily survive a fall from a height of 1.5 metres if it is knocked over from its tripod. After this fall (if it does not accidentally land on a point with the glass), work can continue as normal. If a deviation does occur after a fall, Leica will calibrate the construction laser free of charge for 5 years under the unique PROTECT by Leica warranty.

Base unit - Use it as an easy-to-operate, single-button horizontal laser for levelling concrete and formwork, checking and transferring heights, and for ground levelling applications.

The CLAx700 - has +-15% fully automatic levelling functionality in 2 axes with an adjustment option.

The Rugby CLAx700 also has

• up to max. 900 rpm
• Automatic slope in 2 axes and hold (slope catching & monitoring)
• Beam Masking, Masking of the side in 16 different ways
• Automatic alignment
• Temperature monitoring
• Hi-Alert (Tilt)
• Plumb point upwards
• Scan function (10°, 45° and 90°)
• Adjustable speed (0, 120, 300, 600 and 900 rpm)
• The laser can also be used vertically
• IP68 waterproof and dustproof

SCOPE for Rugby CLA lasers (Option)

Leica sighting scope for Rugby CLA lasers.

This sight is used to align the laser in a specific plane at a great distance in order to accurately set a slope plane in a specific direction.

• 4 x 28 mm
• 4x magnification
• Includes magnetic adapter plate

Specifications CLA Basic:

• Leica Rugby CLAx Basic Rotating horizontal laser
• 5-year instrument warranty and 2-year drop warranty
• Lifetime warranty on housing for manufacturing/material defects
• Accuracy ± 10" ± 1.5 mm at 30 m
• Automatic levelling range ± 6°

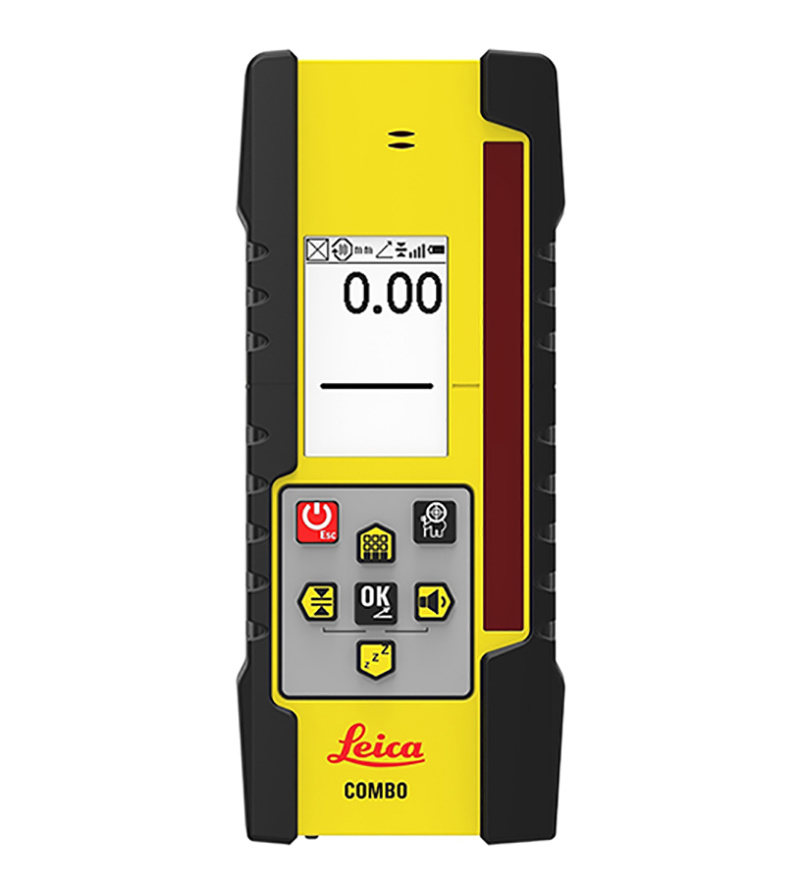

• Working range with Combo mm receiver, RE140/160 1350 diameter
• Working range Combo remote control 300 metres
• Manual mode yes
• Laser class Class 1
• Waterproof class 100% IP68/MIL-STD-810G
• Operating temperature -20 °C to +50 °C
• Storage temperature -40 °C to +70 °C
• Rotation speed 5, 10, 15 RPS (300, 600 or 900 rpm)
• Hi Alert tilt function in case of impact
• Alarm When temperature exceeds 50° Celsius
• Batteries Li-Ion 50 hours on 1 charge, 1 hour charging equals 8 hours of operation
• Battery alarm at 10% battery charge yes
• Rotation speed when battery charge is low 7 RPS (low battery)
• Charging time 5 hours
• Weight 3.9 kg
