Vesala MicroSonde VMS3-(33kHz) Ø 2,8 mm

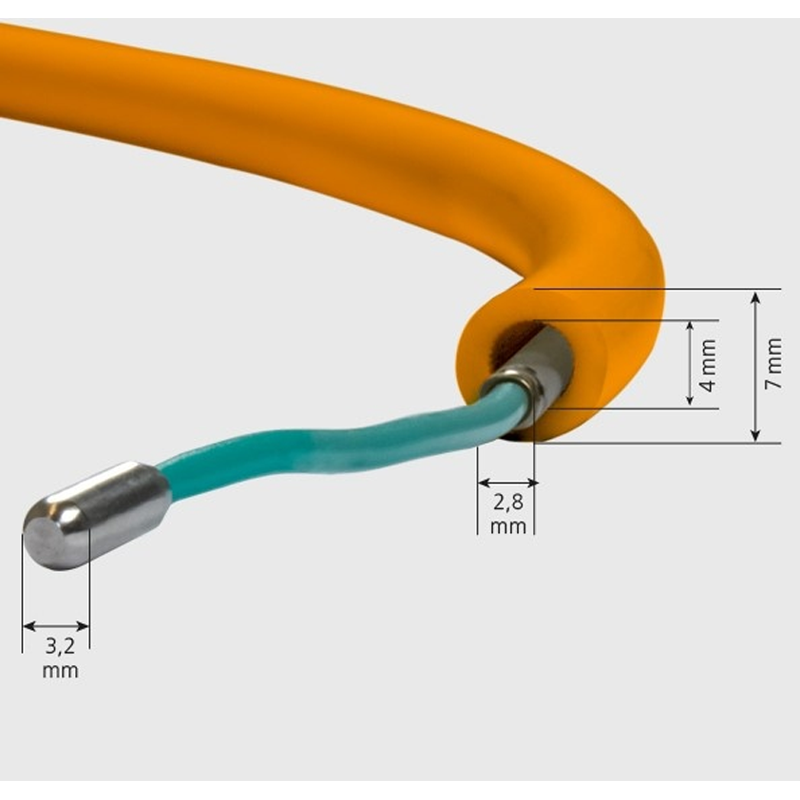

NanoSonde VMS3-33 is Vesala’s new, world’s tiniest active sonde for small underground ducts. It is only 4.6 mm in diameter so it is optimal for calibrating 3.5 mm (inner diameter) fiber optic ducts and to locate their blockages, dents and other problems. VMS3-33 is flexible in the middle so it can navigate tight duct curves down to 170 mm radius.

NOTE: No cable pull spring can be attached to the VMS3, it must be blown through the pipe with air. (See the demo video) and can be captured by the Probe catcher SC39

VMS3-33 is intended for use with the Vesala CL43 Compact Locator and other cable tracers and pipe locators operating on the 33 kHz trace frequency, such as the Leica DD120, DD130, etc.

How to calibrate microchannels with VMS3-33

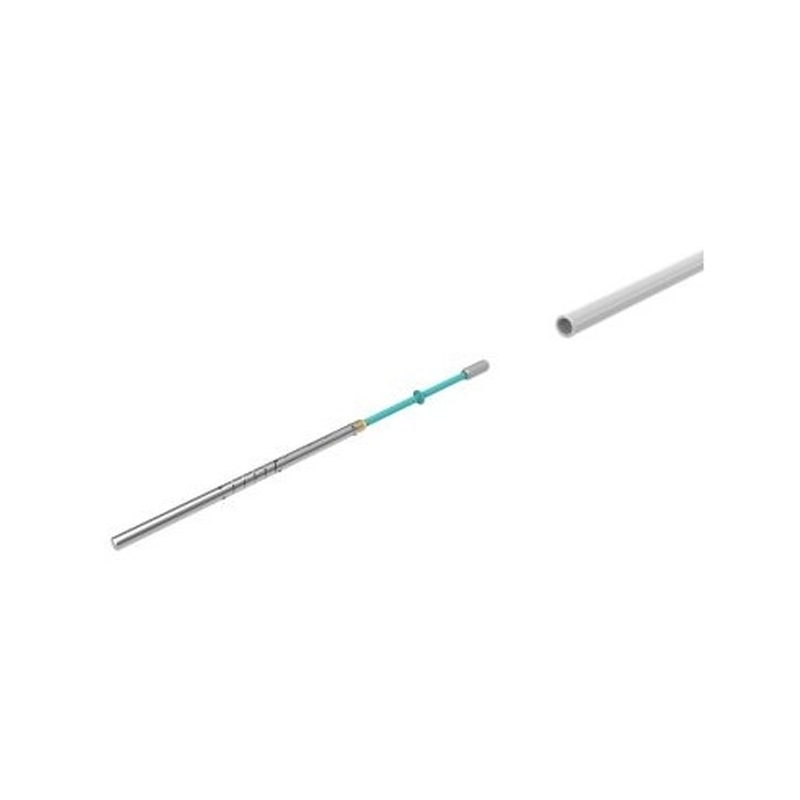

Before blowing ( Shooting the probe under air pressure through the pipe), a shock absorber of suitable size is attached to the probe. This protects the probe if it hits an obstacle. After inserting a battery, the probe is injected into the duct. If the probe passes through the canal without stopping, the canal is successfully calibrated, or empty. If the probe stops in the duct due to a blockage or kink in the pipe, it is located above ground with a cable detector. Knowing the exact location of a blockage saves a lot of time and saves unnecessary digging costs.

Technical characteristics VMS3-33

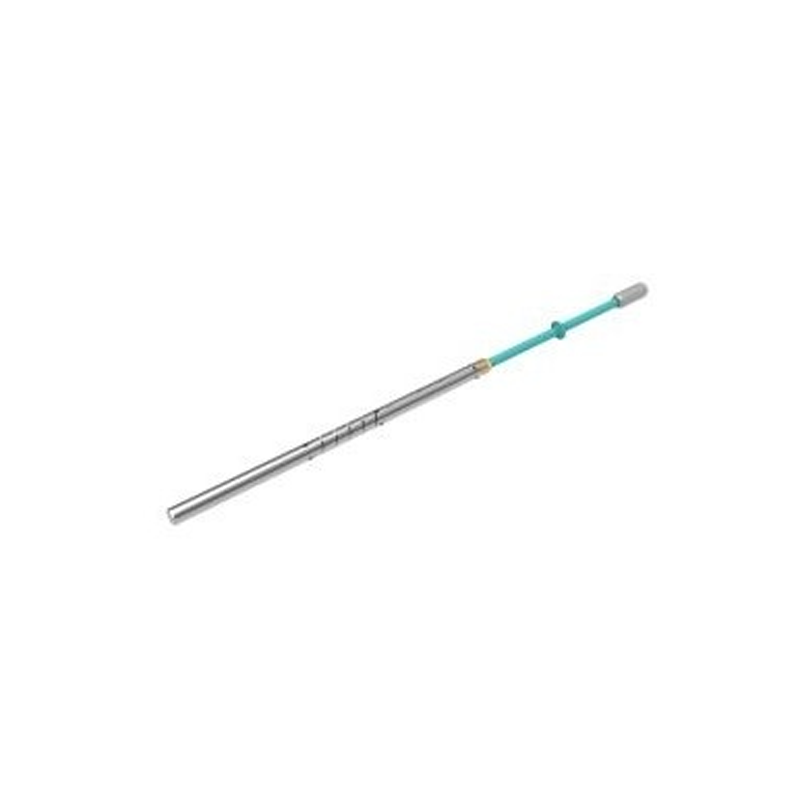

The VMS-33 turns on and starts transmitting a detection signal when a battery is inserted and the battery cap is attached. Typical detection distance with CL43 receiver is 2.3 m. Replaceable lithium battery allows a total operating time of about 6 hours, depending on ambient temperature. VMS3-33 diameter is 2,8 mm and length with battery cap 61.5 mm, without shock absorber. with Caliber 117 mm

The batteries can bought in boxes off 10 pieces (OPTION) ( BR211) see Photo)

The livetime off the 3V Lithium batterie can be 4 till 6 hours.

Scope off delivery:

• VMS3-33 Transmitter sonde
• Battery cap tool
• 3.0V lithium battery BR211, 2 pcs
• Shock absorber and 2.8mm calibrator

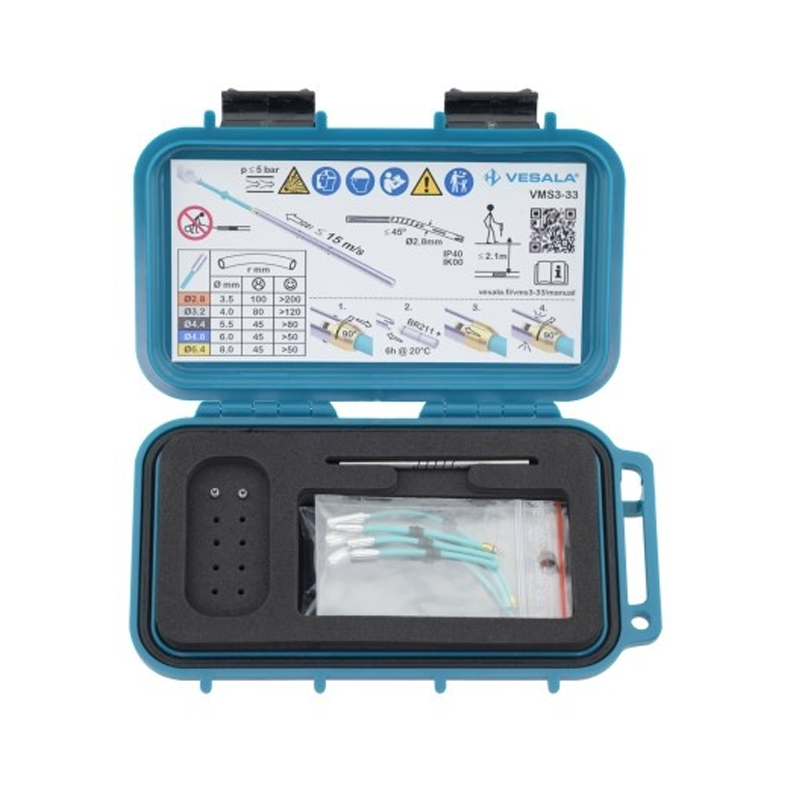

• Plastic storage box SB3
• Quick guide

Scope of delivery:

VMS3-33 Transmitter probe
Battery cap tool
3.0V lithium battery BR211, 2 pcs
2.8 mm calibrator for 3.5 mm pipe, 2 pcs
Plastic storage box SB3
Quick guide
