MTR-125 GN Digital mm hand receiver for Red and Green rotation lasers

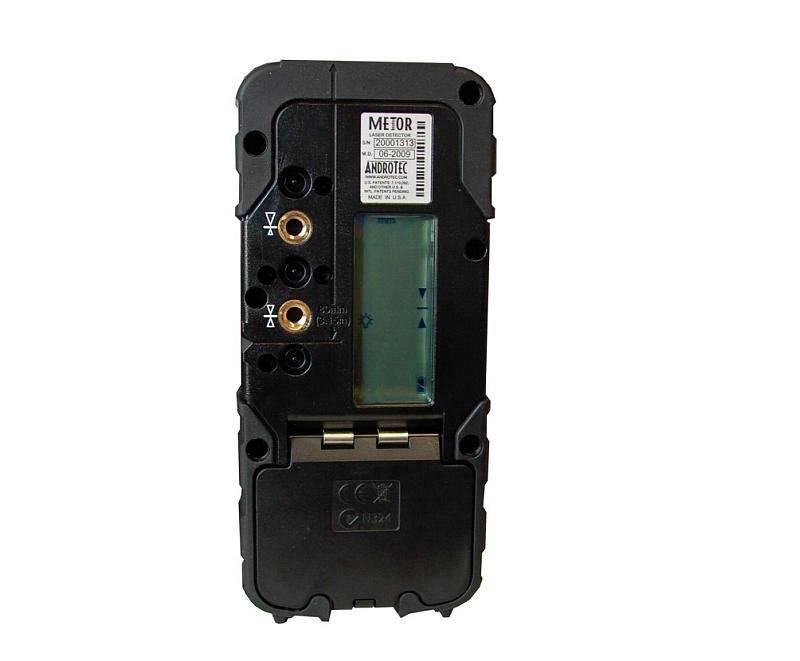

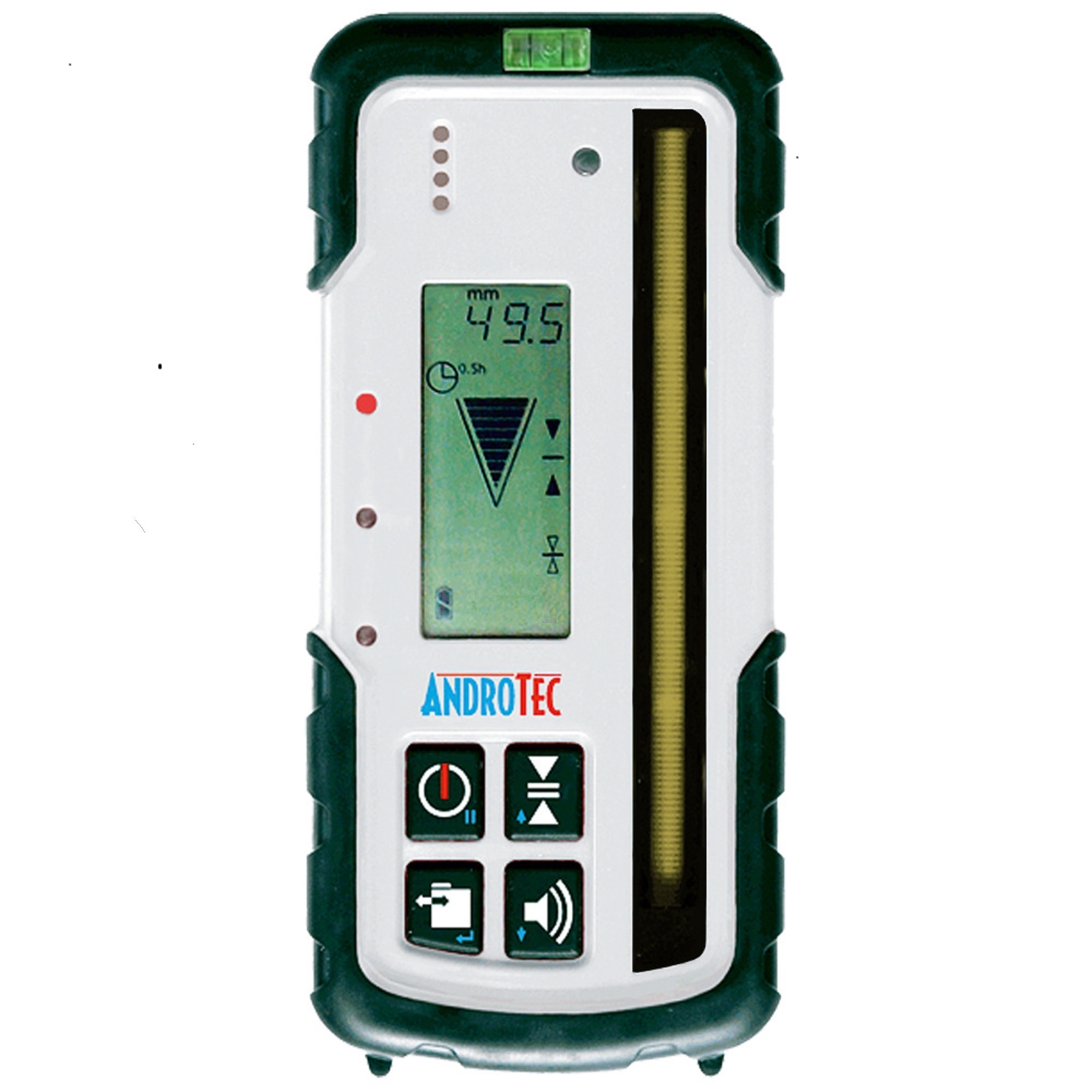

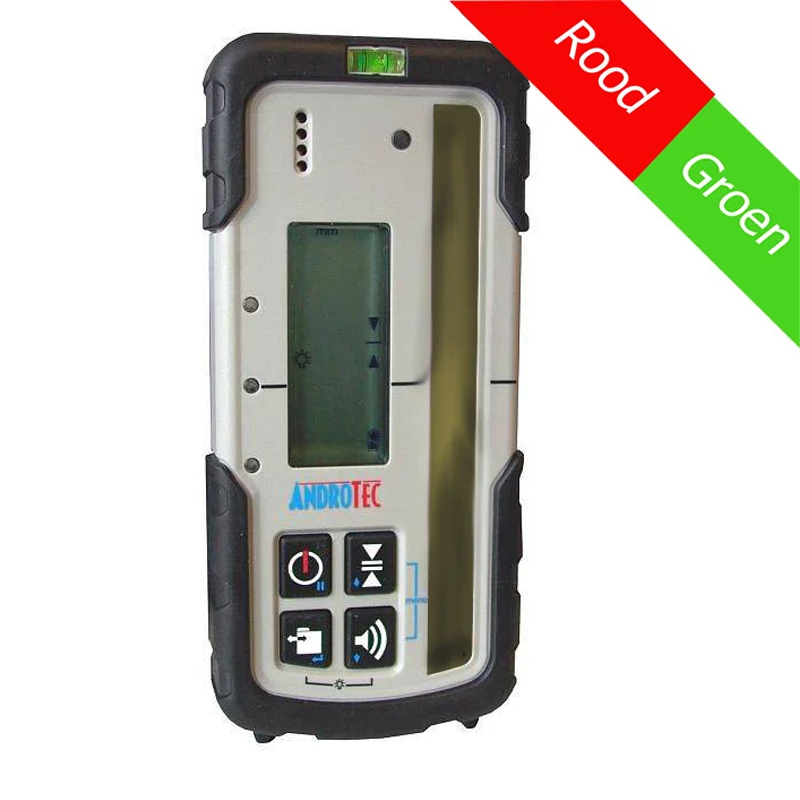

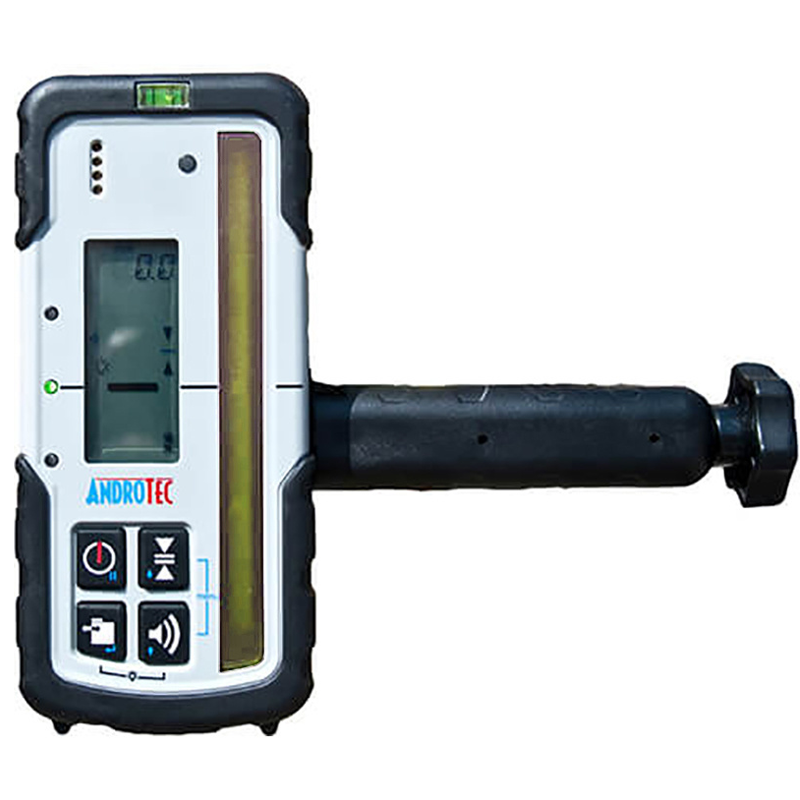

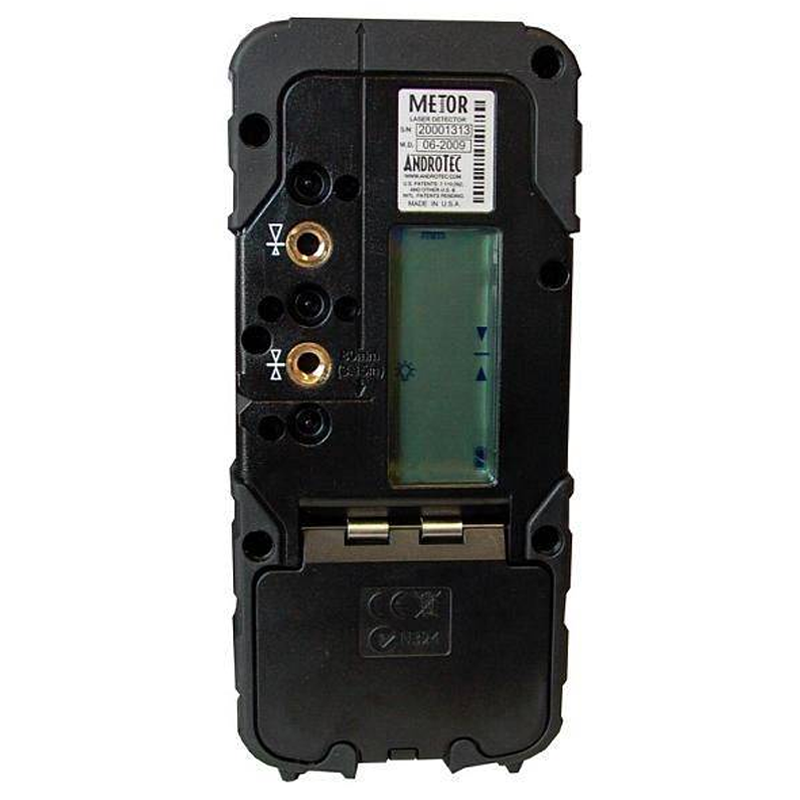

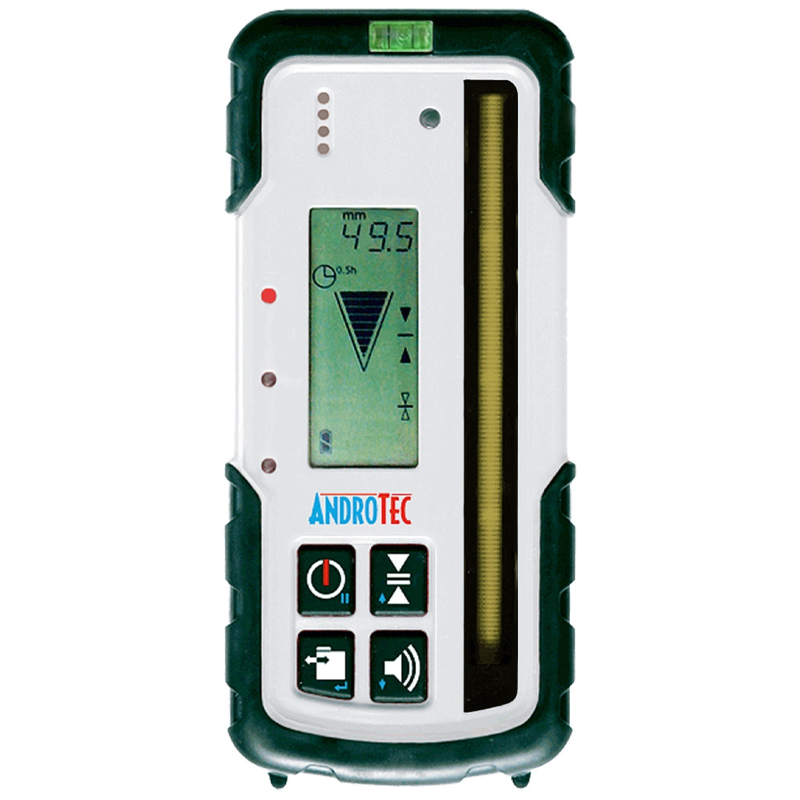

Metor MTR-125 is powered by AndroTec’s patented and revolutionary X2L-Sensortechnology.
Metor MTR-125 measures the distance between the laser beam’s hitting point and the marking notch and displays the value. Thus, level differences can be easily measured.
Metor MTR-125 is accurate. Upon Power On the device automatically performs a self-calibration procedure. This guarantees constant maximum accuracy.
Metor MTR-125 is variable. The user himself can define the on-grade level.
Metor MTR-125 has memory. The device can store up to 100 readings.
Metor MTR-125 is communicative. Both, stored readings as well as actual data (realtime) can be transferred to a PC for further processing.
Metor MTR-125 is reliable, robust and absolutely waterproof. Metor works with all common rotating lasers.
Metor MTR-125 is persistent. With two AA batteries for up to 60 hours (continuous usage).
And the Best: Metor MTR-125 is not much more expensive than a good, traditional laser detector!

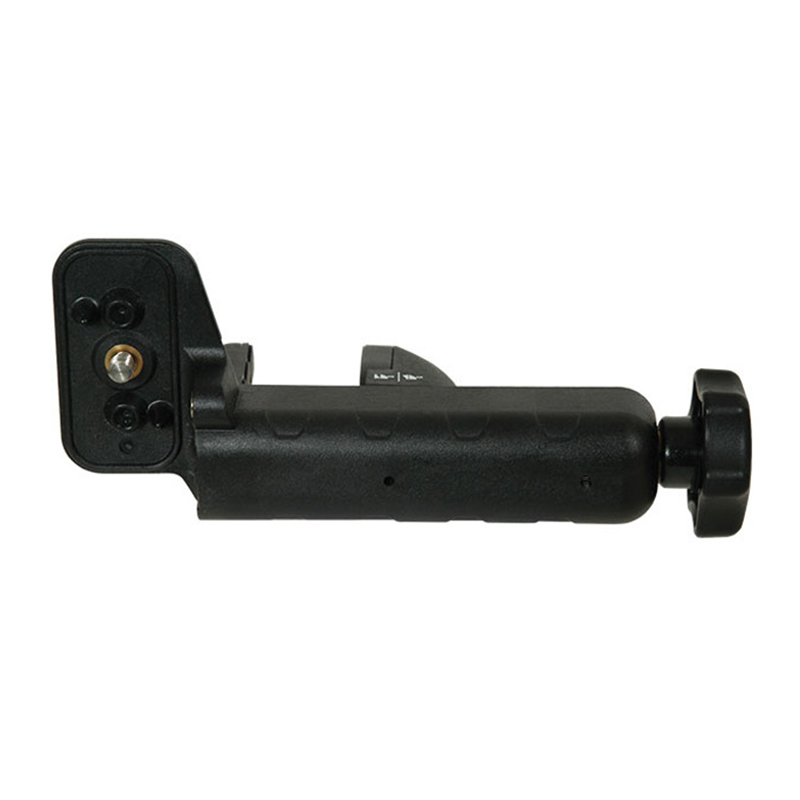

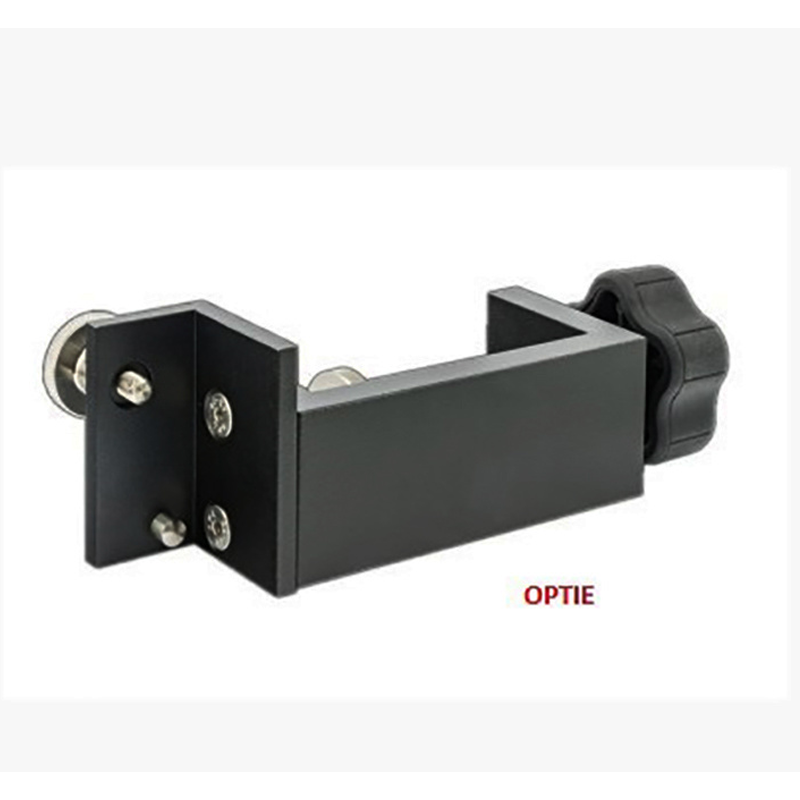

Option: Metal clamp
|Useable Range||1000m (diameter, depending on laser quality)|
|X2L-Sensor||125mm length, 100mm numeric|
|Self calibration||automatically upon Power On|
|Measuring units||mm, cm, inch, feet|
|Numeric resolution||0,1 / 0,5 / 1 / 2 / 5 / 10 mm|
|Detectable spectrum||red, infrared
optional: green, red, infrared
|height measurement precision||±0,5mm, when centered, otherwise
0,5mm + 3% of height reading
|First strike detection||Yes|
|Strobe light supression||Yes|
|Beeper volumes||High: >105dBA / medium: 95dBA
low: 65dBA / Off
|Laser source rotational speed||105rpm to 1200rpm|
|Automatic shutoff||Yes, configurable by user|
|non-volatile memory||Yes, settings survive Power Off and battery removal|
|Protection class||IP67 (waterproof)|
|Power supply||2x 1,5V 'AA' batteries|
|Battery life||Up to 60 hours of continuous operation|
|Data memory||100 readings||-|
|radio module||-||Yes 1)||-|
|radio link range||-||up to 80 m||-|
|Physical dimensions||168 x 76 x 36 mm|
|Weight without clamps||0,39kg (with batteries)|
|Operating temperature range||-20°C to +60°C|
|Storage temperature range||-40°C to +70°C|
