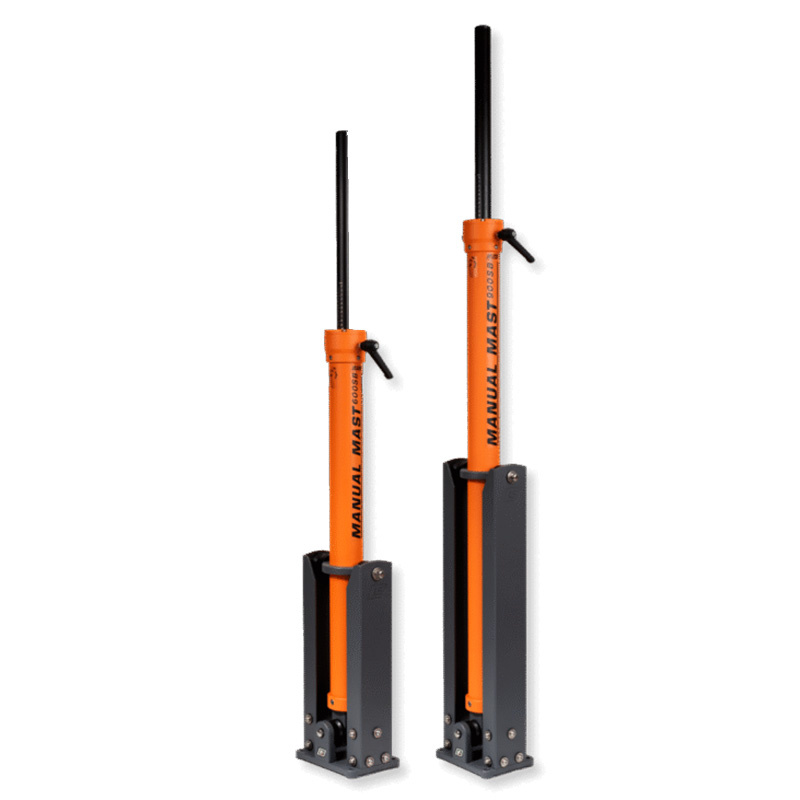

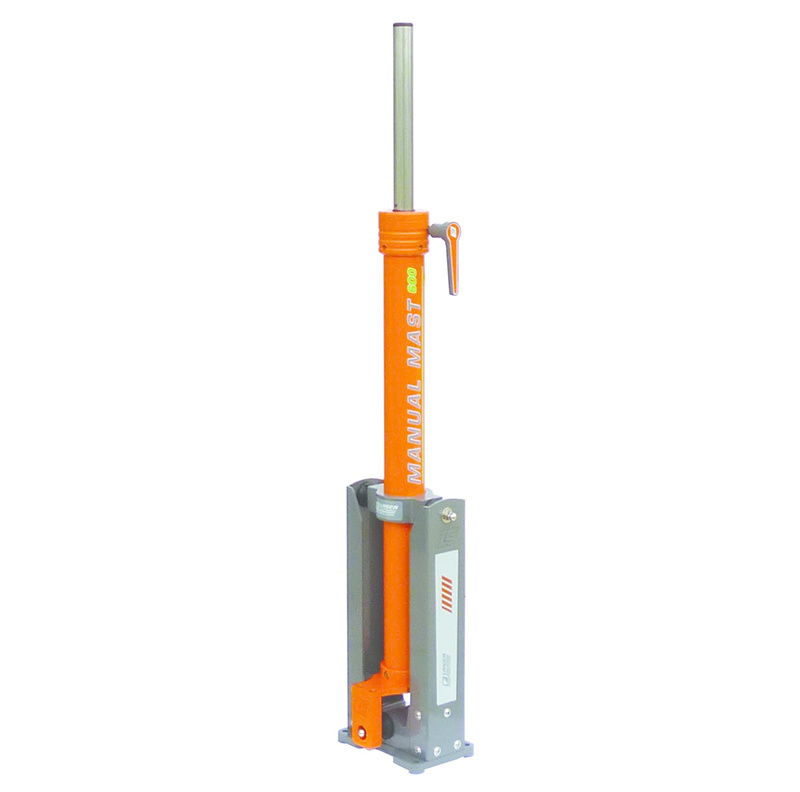

Manuel Mast 900, extendable mast from 171 tot 261cm

Manuel Mast MM 900SB, extendable mast from 171 tot 261cm with shockabsorbing bracket

Not yet rated Add your review

Machinecontrol Manuel Mast 900, extendable mast from 171 tot 261 cm for machine control systems with shockabsorbing bracket

900SB Mount

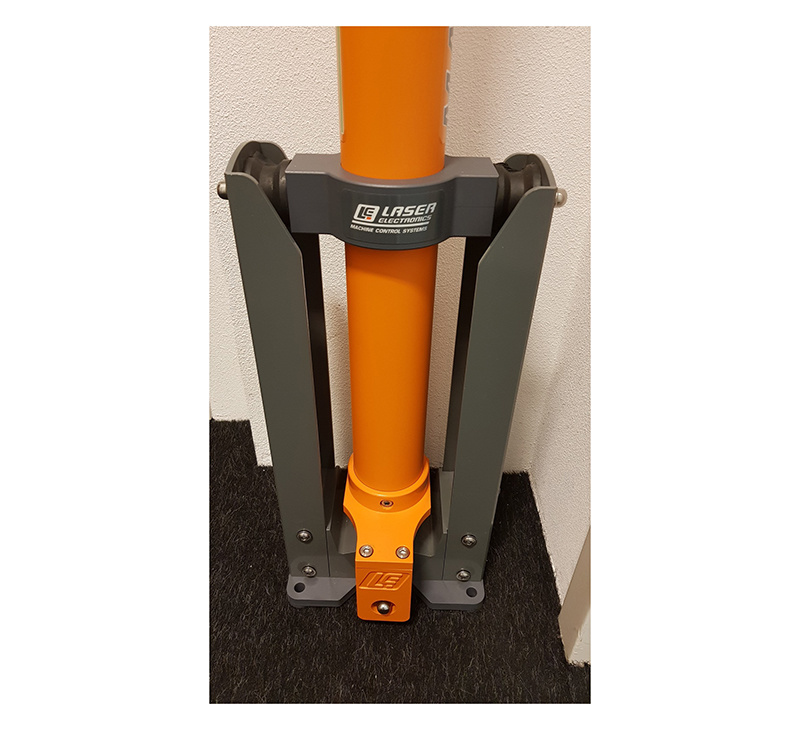

The manual 600SB & 900SB mounts are fitted with a shock-absorbing bracket, making them even more stable.

This mount can be combined with the CS, CSX or CSD system, or with any other brand of system.

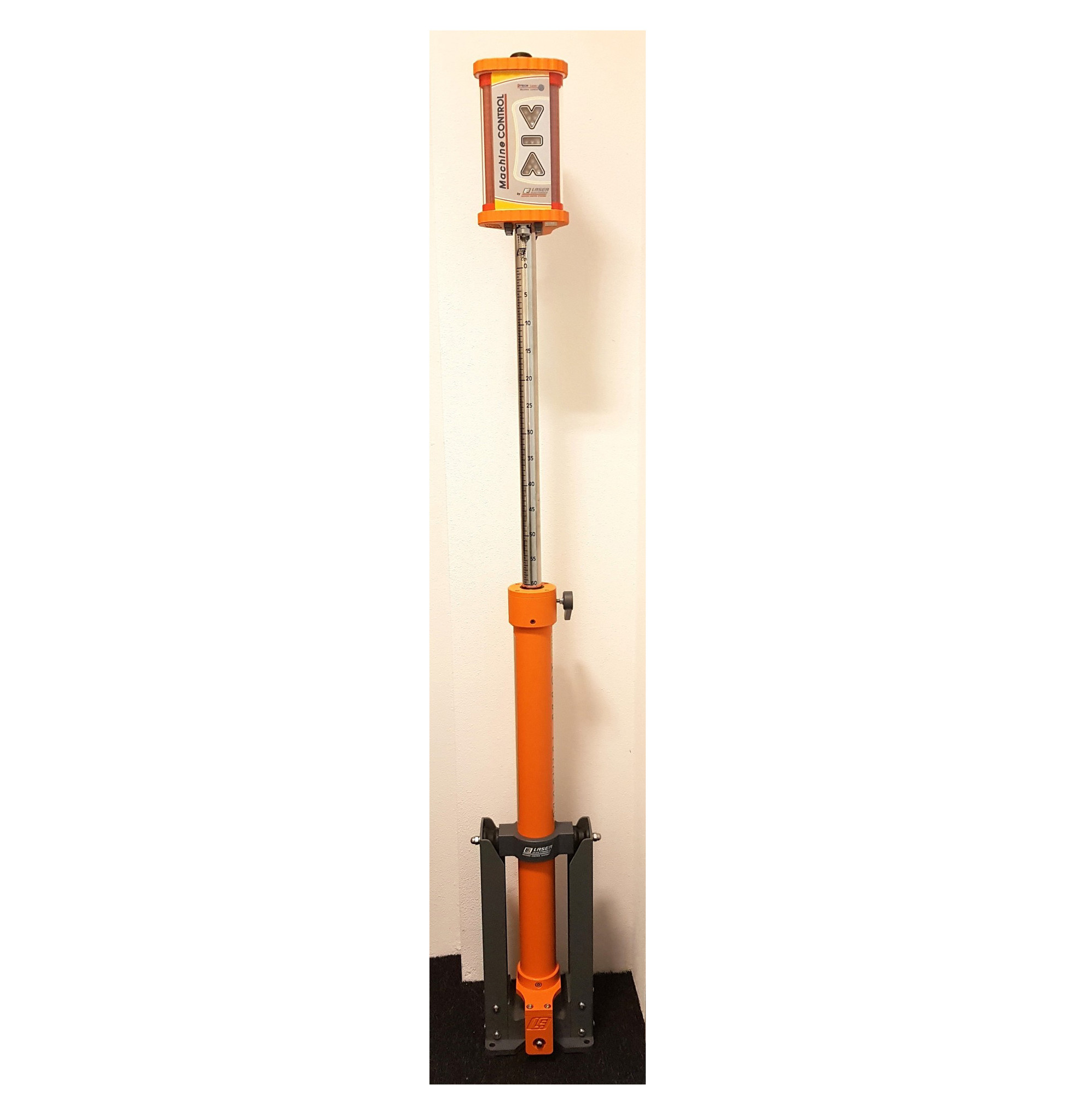

The laser receiver can be mounted on the telescopic tube and adjusted for height.

Thanks to the measurement scale (2.5 mm increments) on the telescopic tube, it is very easy to determine the height.

work effortlessly and achieve high-quality project results.

The CNC-milled components make it extremely robust and suitable for the most demanding working conditions.

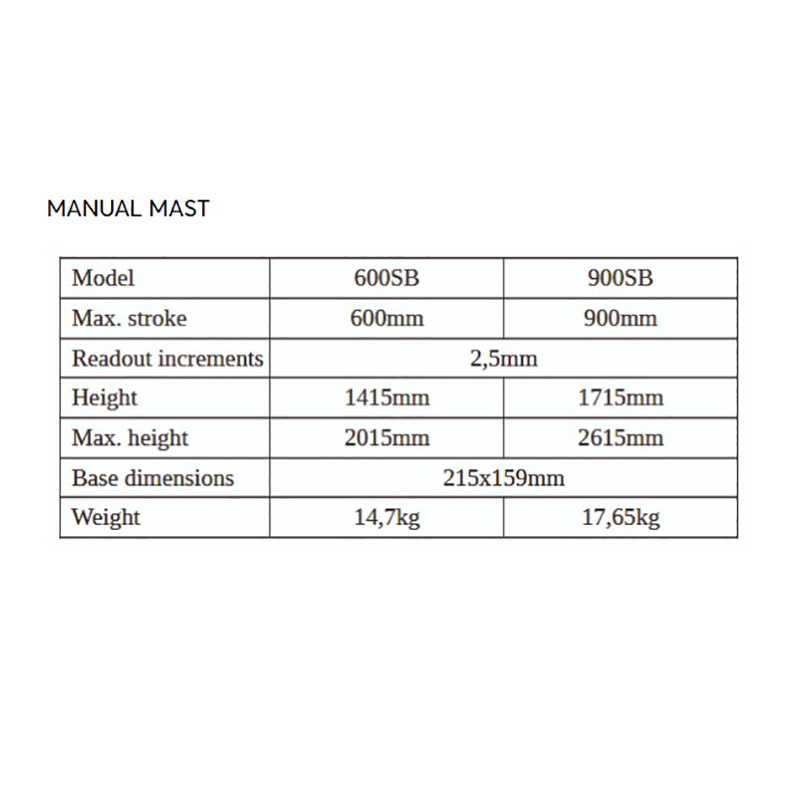

Aluminium mast, manually extendable from 171.5 to 261.5 cm, for machine control
Total height when retracted: 171.5 cm
Total height when extended: 261.5 cm
Tube diameter 40 mm, extendable length 900 mm, stainless steel with 2.5 mm increments.
Base diameter 215 x 159 mm with 4 holes and water drainage
Mounting pattern: 184 mm x 128 mm, hole size 13 mm (suitable for 4 x M12 bolts)
Weight 17.65 kg
