ADA wallmount complete, Magnetic lift + Wall bracket

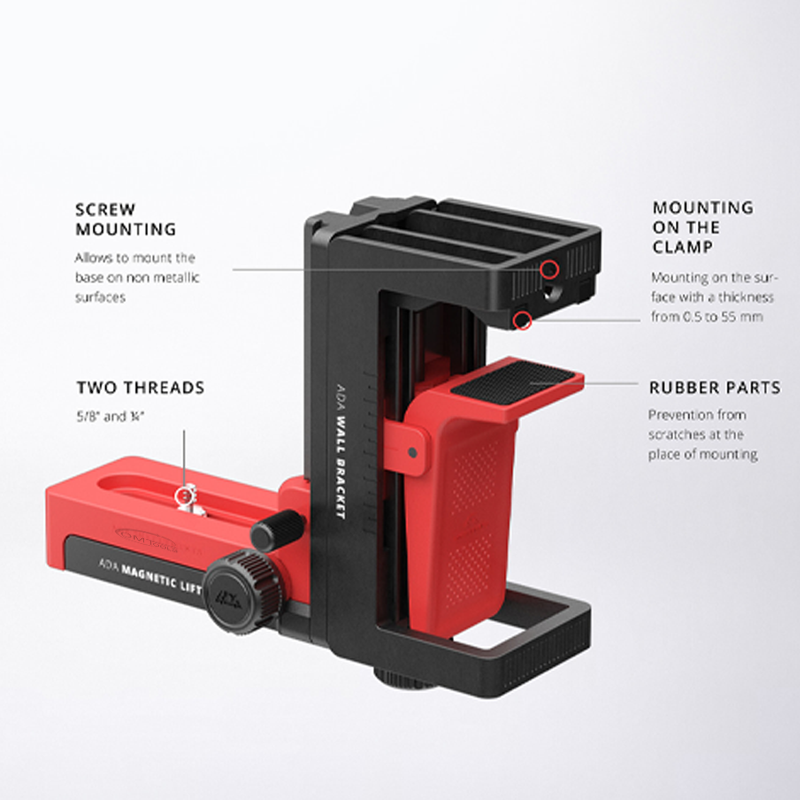

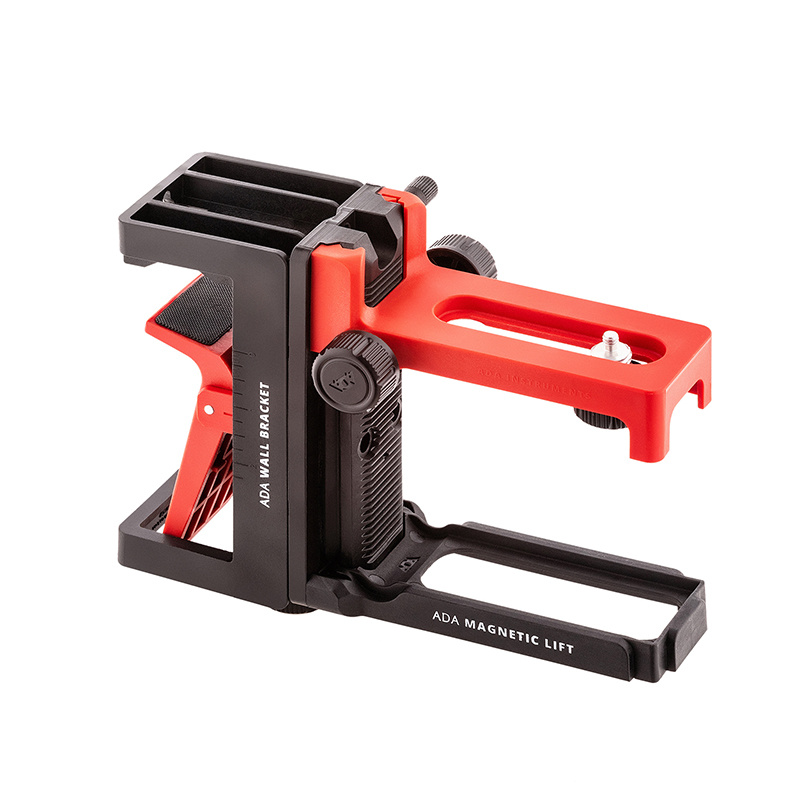

ADA BASE (MAGNETIC LIFT + WALL BRACKET) is an universal mount with micro lift for laser level mounting on any surfaces and height. It consists of two parts: ADA MAGNETIC LIFT (magnetic mount with micro lift for laser levels up to 1 kg) and и ADA WALL BRACKET (quick-release clamp with capture size up to 55 mm. It is used for laser levels mounting up to 2 kg on MAGNETIC LIFT).
Impact-resistant. The mount is made of high-strength plastic resistant to impact. It’s almost impossible to break or damage ADA BASE. It’s specially designed for professional use in aggressive construction site conditions.
Powerful magnets. Strong neodymium magnets are used for mounting.Special hole for mounting on the tubes. Rubber parts for Prevention from slipping on the surface.
Micro lift. Adjustment range from 0 to 11 cm. The adjustment is realized with the help of double-sided handles.
Two types of threads. Two threads ¼ and 5/8 for mounting on the tripod. Two additional fastening screws ¼ and 5/8 in the complete set.
Reliable clamp. Fast mounting and quick release is realized by pushing a large spring-loaded key. Rubber parts for prevention from scratches at the place of mounting. V shape hole for reliable mounting on the tube. Maximum capture size is 55 mm. Accurate adjustment of the strength and capture size is done with the screw.
Hole for the self-tapping screw. Special hole at the top for the self-tapping screw for mounting on the walls, pillars and so on.
|Adjustment range, mm||0-110|
|Capture size of the clamp, mm 0.5 - 55|
|Thread for laser level, inch||1/4" and 5/8"|
|Thread for tripod, inch||1/4" and 5/8"|
