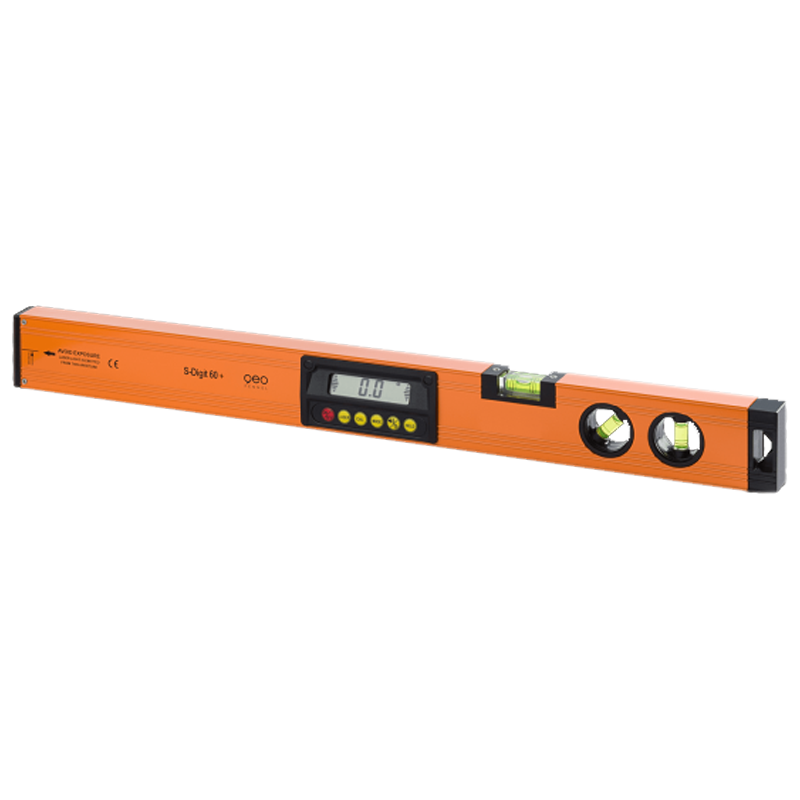

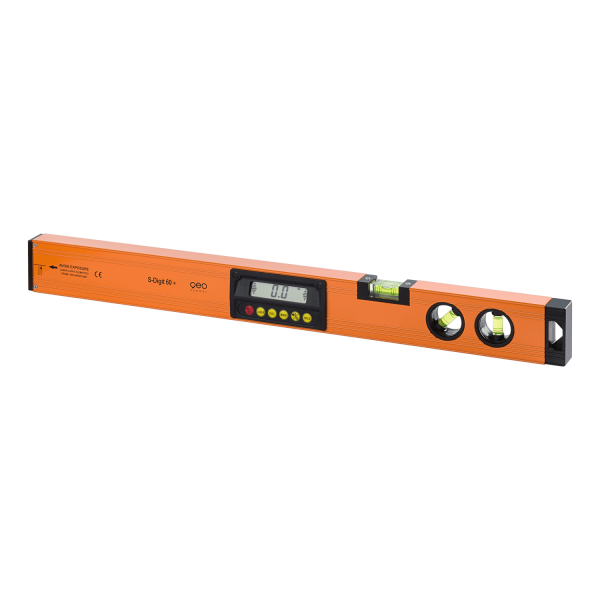

geo-Fennel S-Digit 60+ Digital Spirit Level 60 cm incl. laser beam
- Brand:
- geo-Fennel
- Article number:
- 33620010
- EAN number:
- 4045921004900
- SKU number:
- S-Digit 60+
- Availability:
- In stock (1)
- Delivery time:
- 1 - 7 Days
€191,00
Excl. tax
Robust magnetic slope measurer. Length 60 cm. Incorporated laser beam.
Robust slope measurer. Length 60 cm. Incorporated laser beam.
NEW: Magnetic base.
Features
- Different signal tones when approaching 0° / 90° and continuous tone at 0° / 90°
- Inclination direction indication
- Zero position re-set at any position
- Automatic digit inversion for overhead measurements
- Visible laser beam to extend working range
- HOLD function to freeze measurement
- Illuminated display
- 1/4“ thread for camera tripod
Properties: "S-Digit 60 +"
| Measuring distance: | 4 x 90° |
| Accuracy: | 0° and 90° = ± 0.1°, 1° - 89° = ± 0,2° |
| Resolving Power: | 0,1° / 0,1 % |
| Laser working range: | 20 m |
| Accuracy laser: | ± 0,5 mm / 1 m |
| Laser wave length: | 650 nm |
| Laser class: | 2 |
| Measuring units: | °, %, mm / m, in, ft |
| Temperature range: | -10°C to +45°C |
| Operating time: | with laser 20 h, without laser 50 h |
| Power supply: | 3 x AA Alkaline |
| Weight (instrument with battery): | 0 86 kg |
| Extended size: | 600 x 60 x 32 mm |
