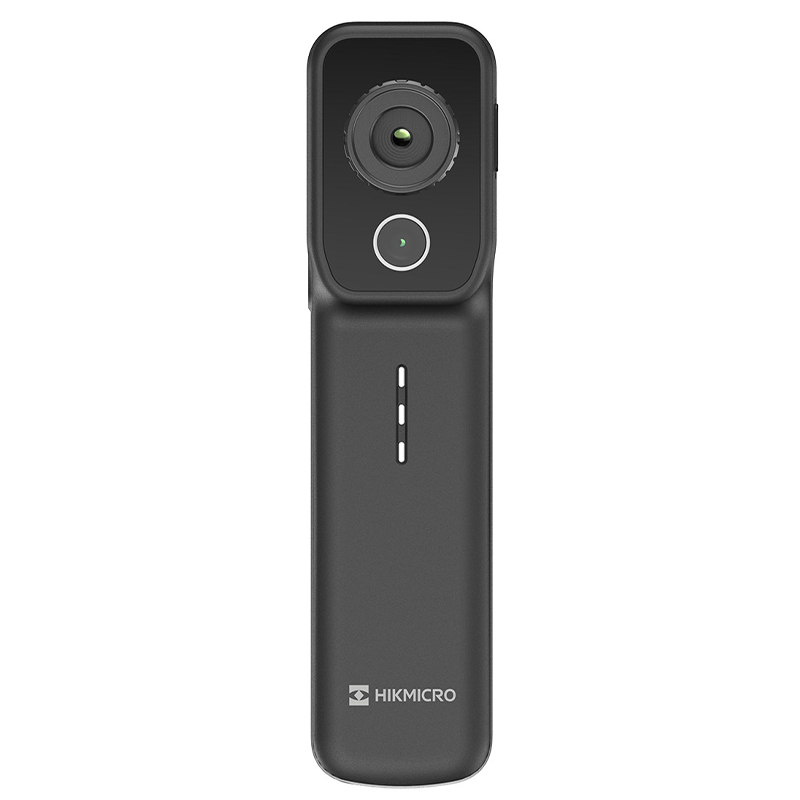

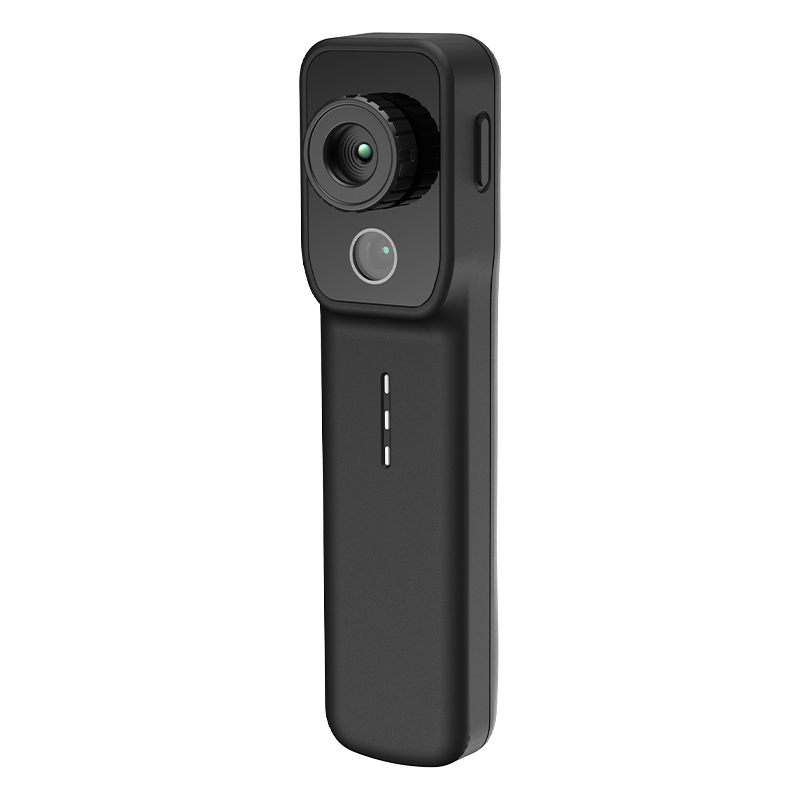

HIKMICRO MiniX, 256 x 192 pixels, Wireless Dual Camera Thermal Imager
- Brand:
- HIKMICRO
- Article number:
- 1450963
- EAN number:
- 6974004646257
- SKU number:
- HM-TJ52-3AQF/W-MiniX
- Availability:
- In stock (5)
- Delivery time:
- 1 - 7 Days
€216,00 €309,00
Excl. tax
MiniX, 256 x 192 pixels, wireless thermal imaging camera for smartphone, with dual camera, razor-sharp focus from near to far. 256 x 192 pixels, 40mK, 25Hz, viewing angle 37.2° × 50.0°
MiniX, Wireless Dual Camera,

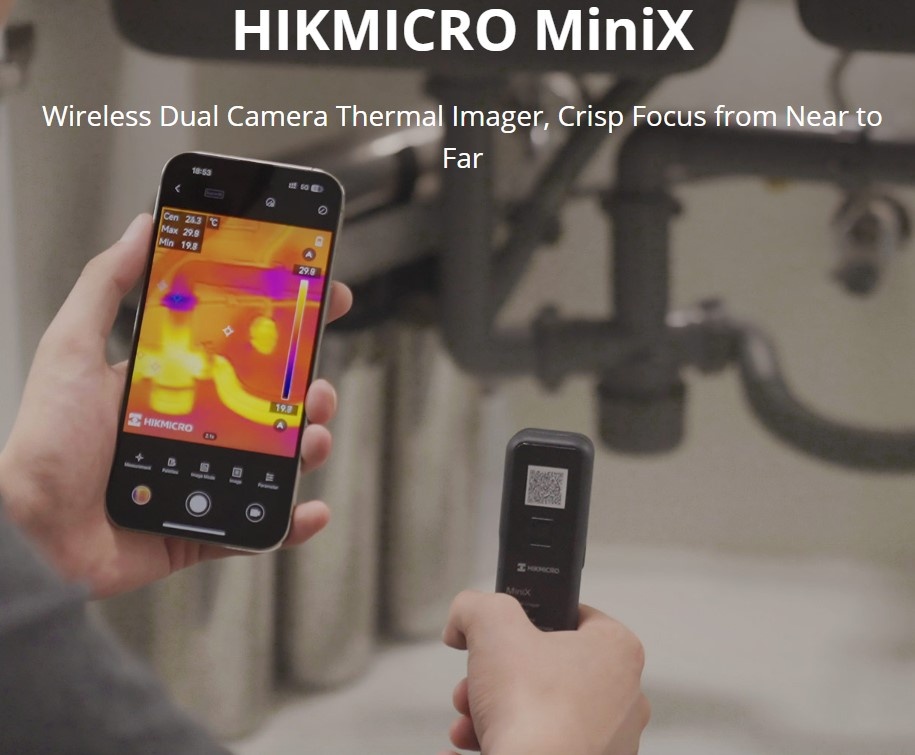

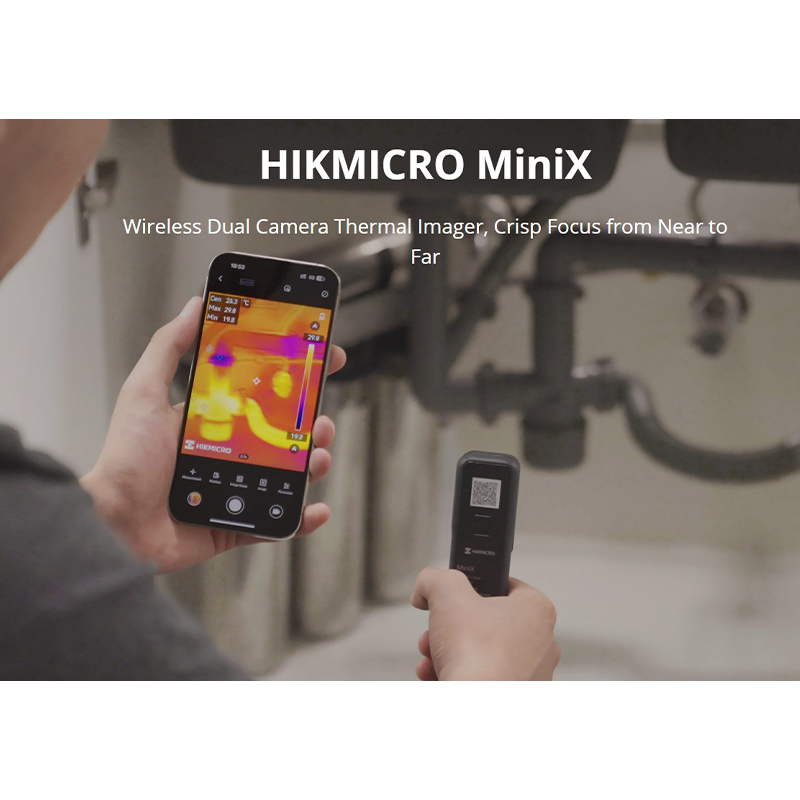

MiniX, Wireless Dual Camera Thermal Imager, Crisp Focus from Near to far
Dual Camera Thermal Imager

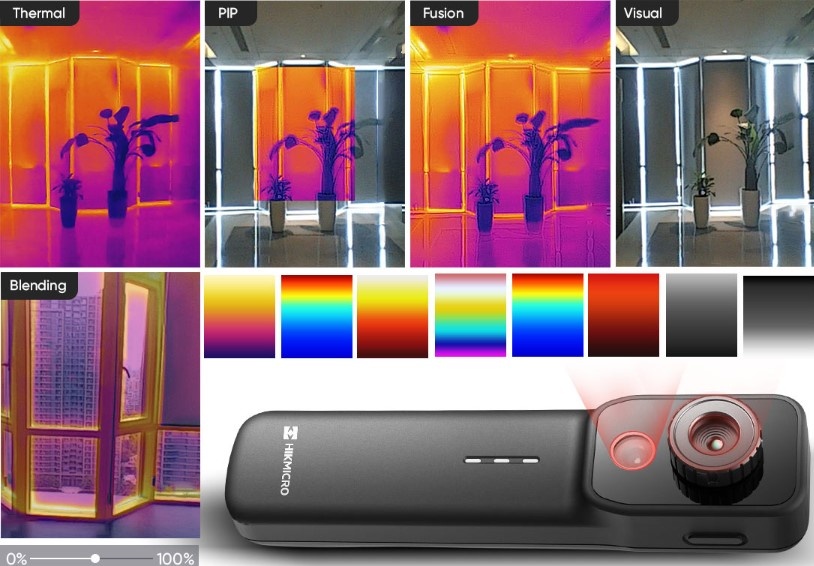

The high-resolution IR and visual cameras uncover hidden details with 5 image modes & 8 color palettes.
Enhanced Image Quality with SuperIR
HIKIMICRO MiniX features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

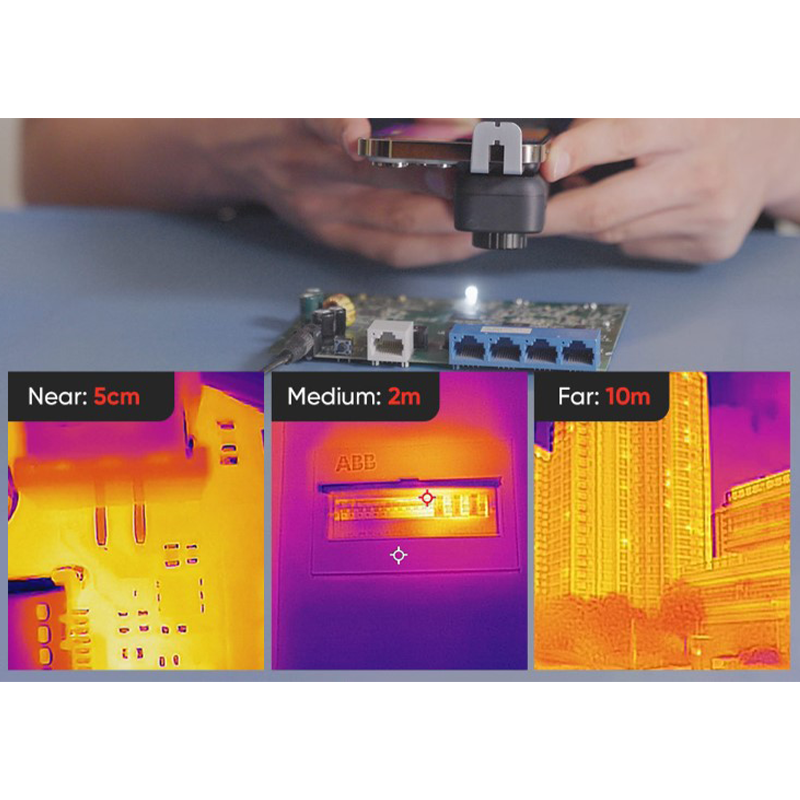

Adjustable Focal Lens
Crisp focus from near to far with a 3.5mm adjustable focal lens for precise details in PCB repair, inspections, and tracking.
Easy and Stable Wireless Connection
MiniX thermal camera simply scan a QR code for a quick wireless connection and enjoy stable image transmission.

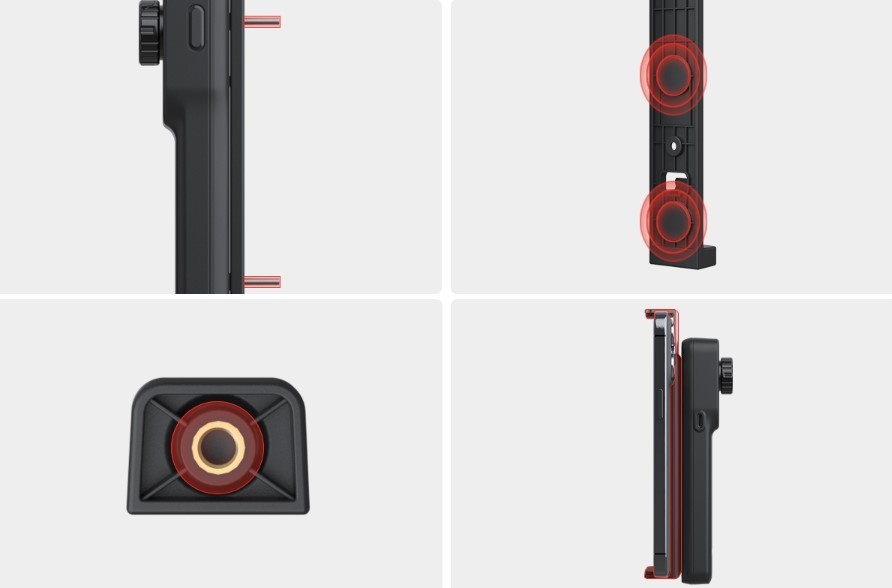

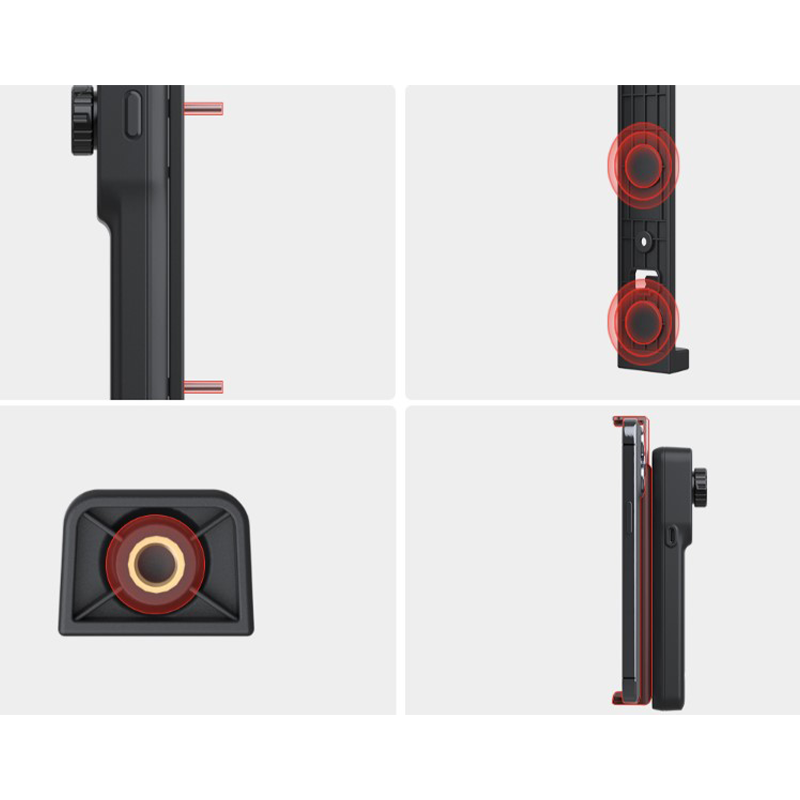

Compact, Ergonomic, Versatile Mounting
The HIKMICRO MiniX features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task.

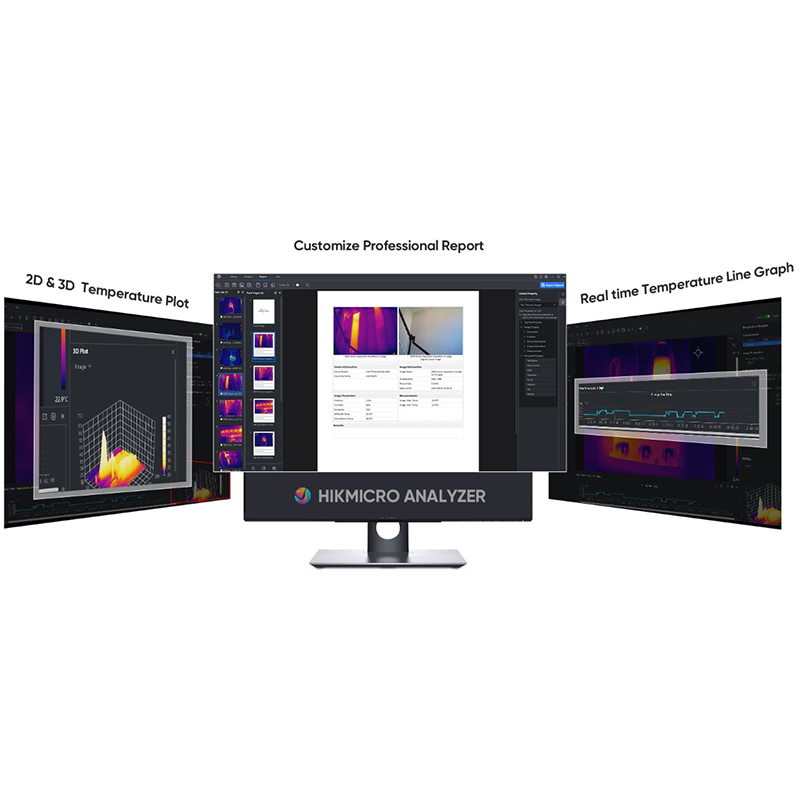

HIKMICRO ANALYZER
HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.
IR Resolution 256 × 192 (49, 152 pixels)
NETD < 40 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz
Detector Pitch 12 μm
Spectral Range 7.5 to 14 μm
Focal Length 3.6 mm
F-number F1.0
Field of View (FOV) 37.2° × 50.0°
Spatial Resolution (IFOV) 3.33 mrad
Focus Mode Manual Focus
SuperIR Yes, on captured images and live view
Min. Focus Distance 0.05 m (0.164 ft)
Image Display
Visual Camera 640× 480 (0.3 MP)
Image Modes Thermal/Visual/Fusion/PIP/Blending
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Measurement and Analysis
Object Temperature Range -20°C to 550°C(-4°F to 1022°F )
Accuracy Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots, 3 rectangles and 1 line
User-definable: 3 spots, 3 rectangles and 1 line
Level and Span Mode Auto/Manual
Data Storage and Communication
Video File Format MP4 video (25 Hz), saved in HIKMICRO Viewer App
Image File Format Radiometric JPEG, saved in HIKMICRO Viewer App
Radiometric Infrared-Video Streaming (Compressed) Over UVC（5Hz）
General
Wi-Fi
USB Interface
Battery Type
Battery Operating Time
Battery Charging Time
Power Saving Mode
Protection Level
Drop Test Height
Working Temperature Range
Storage Temperature Range
Relative Humidity
Weight
Dimension
Power Supply
Battery Indicator
Installation Method
Software Compatibility
Device Compatibility
802.11 b/g/n (2.4 GHz and 5 GHz)
USB Type-C
Rechargeable Li-ion battery
Approx. 4 hours
Supports fast charging. Charge to 50% capacity in 30 minutes，85% in 1 hour，and 100% in 2 hours.
Auto Power-off
IP54
1 m (3.28 ft)
-10°C to 50°C (-4°F to 122°F)
-20°C to 70°C (-4°F to 158°F)
< 95% non-condensing
Approx. 158 g (0.35 lb)
155.45 × 38.89 × 32.15 mm (6.12 × 1.53 × 1.27 in)
USB-C (5V/2A)
Yes, indicating battery level and charging status
Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting

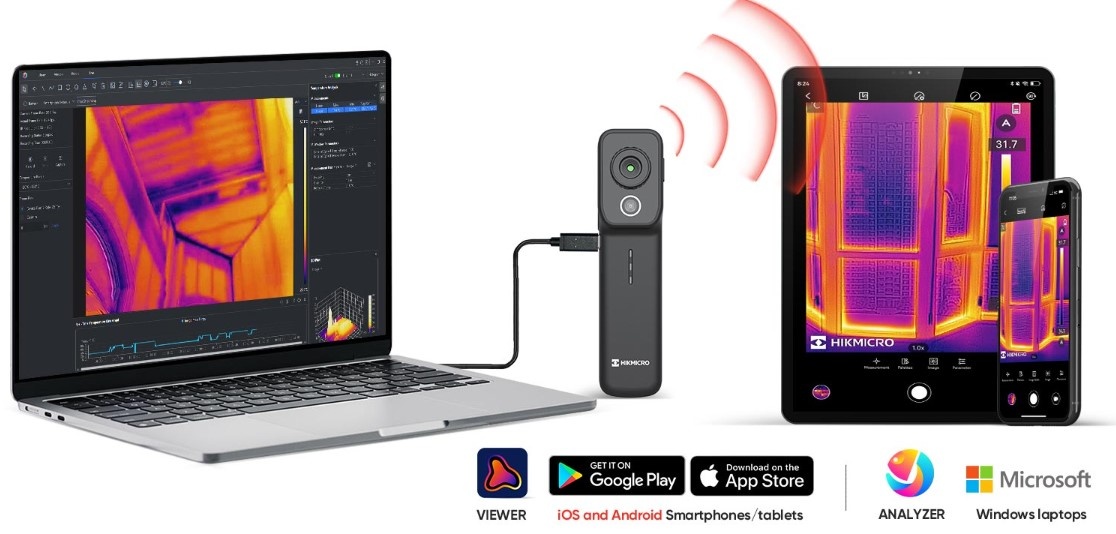

HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices
