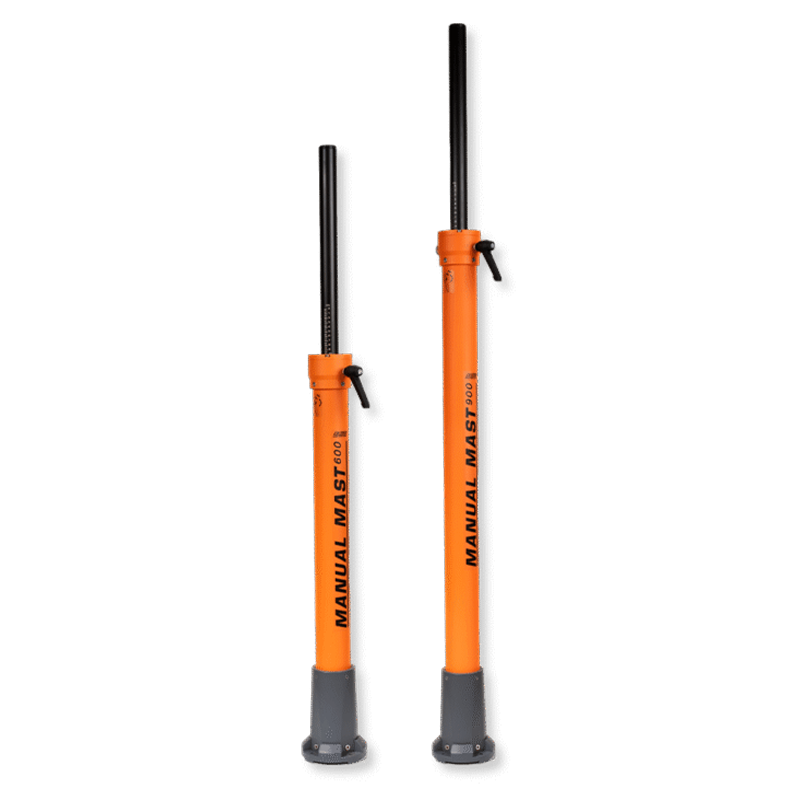

Manually extendable mast:

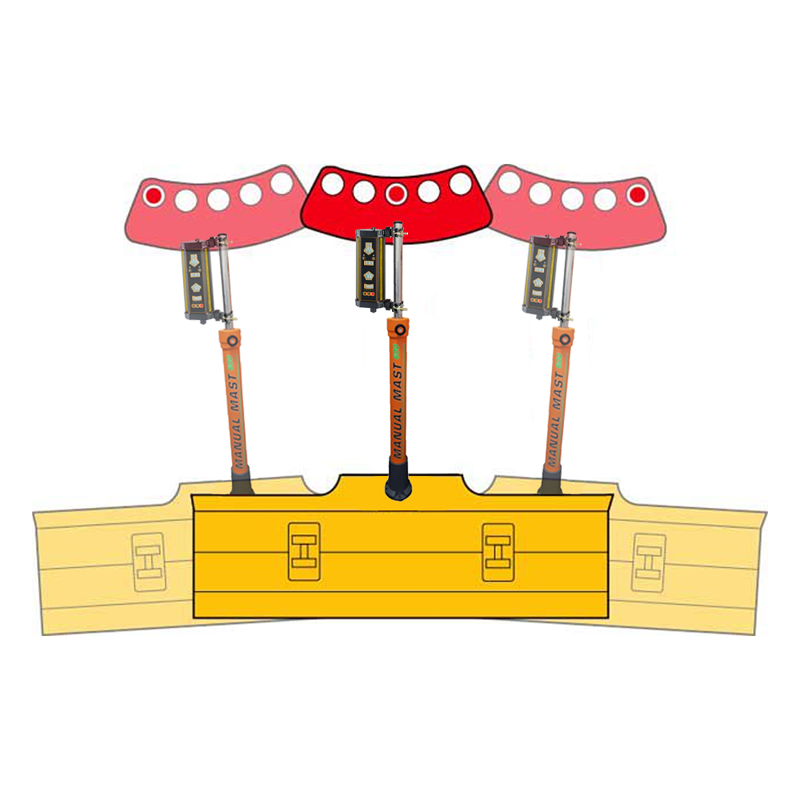

The manual mast 600 & 900 versions are an economical version and can be combined with the CS, CSX, CSD system
or with any other brand system. The laser receiver can be mounted on the telescopic tube and adjust its height.
Thanks to the measuring scale (2,5mm incerements) on the telescopic tube, it is very easy to make setups, working
effortless and achieving high quality project results.
The CNC machined parts make it very robust and suitable for the most demanding working conditions.

• Aluminum mast from 158 to 248 cm manually extendable for machine control until.
• height retracted 158 cm
• height extended 248 cm
• tube diameter 40 mm, length 900 mm stainless steel with cm reading.

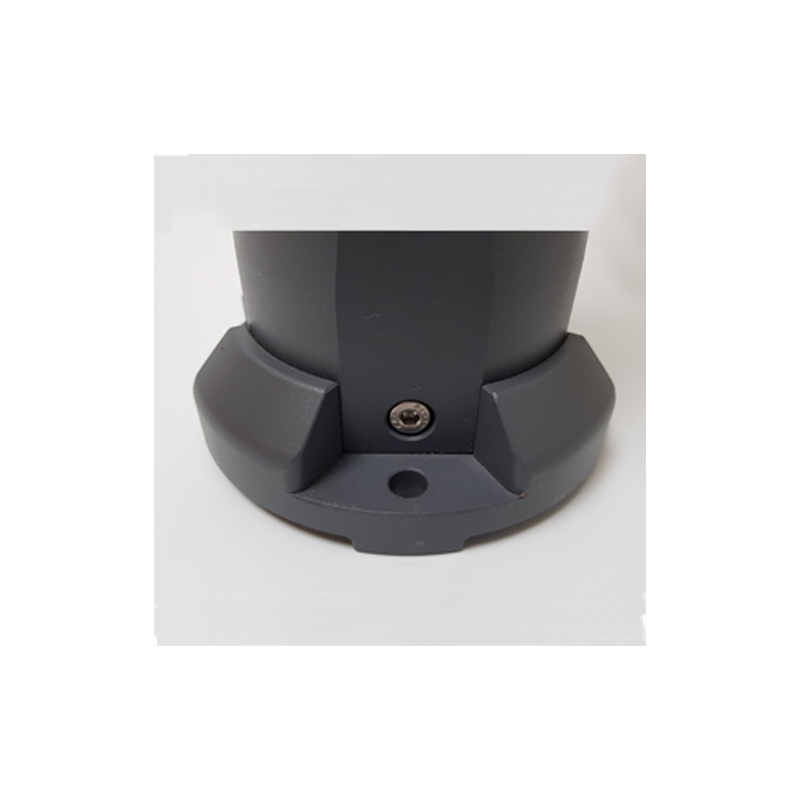

• Base diameter 15 cm with 4 holes and water drainage
• heart size holes 12.5 cm diagonal
• hole size 10 mm
• weight 11 kg
