Product information ‘FET 220K-L’

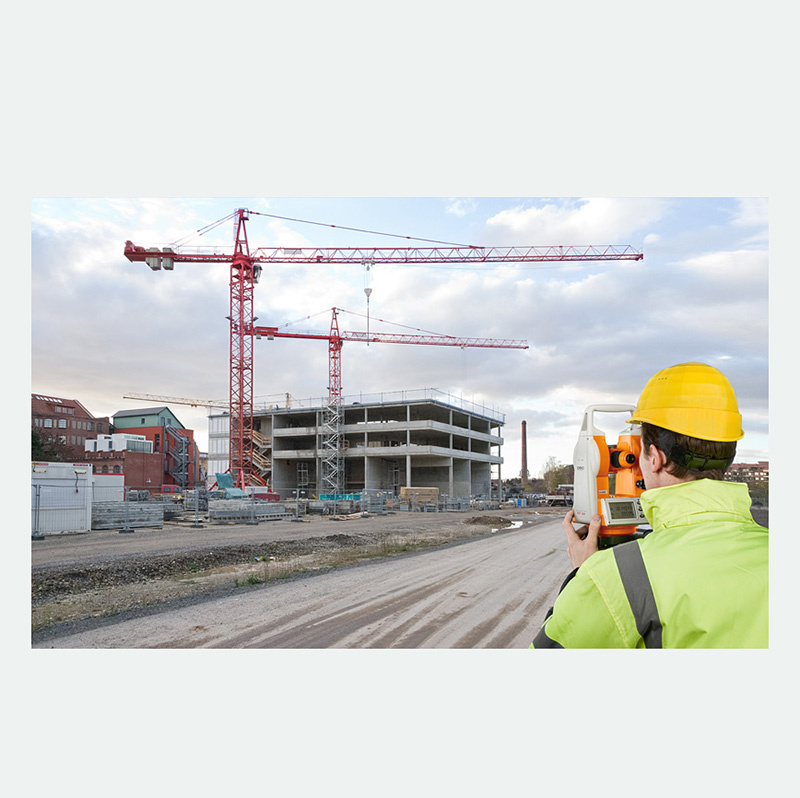

For measuring horizontal, vertical and zenith angles. For use in building construction / civil engineering for vertical positioning of formwork, precast elements or columns.

Extremely user-friendly: large display on both sides with easy-to-read values, a laser plummet for convenient positioning above the ground point and much more.

FET 220K-L - Highlights:

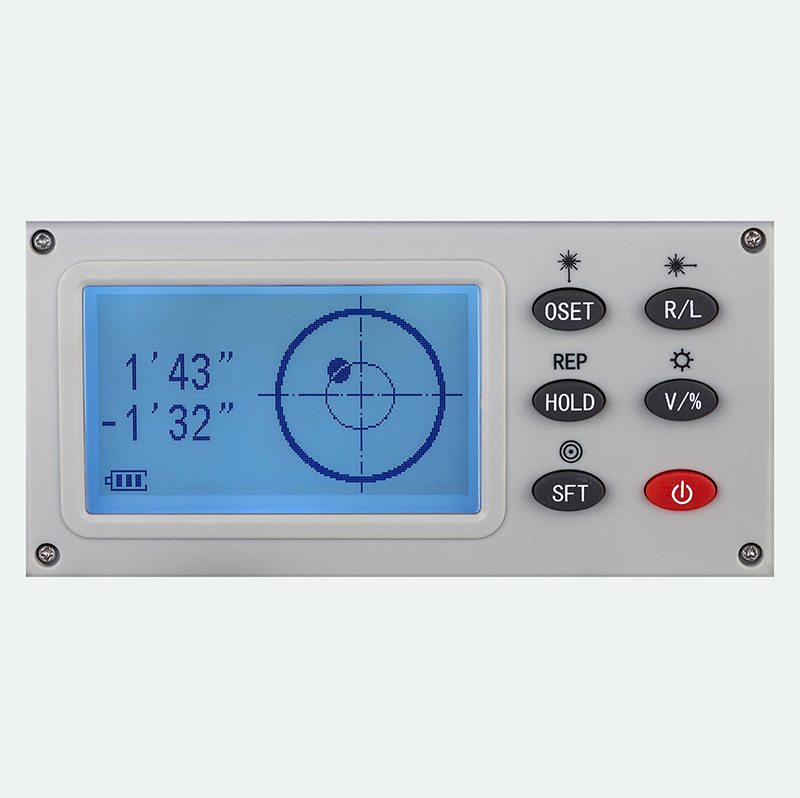

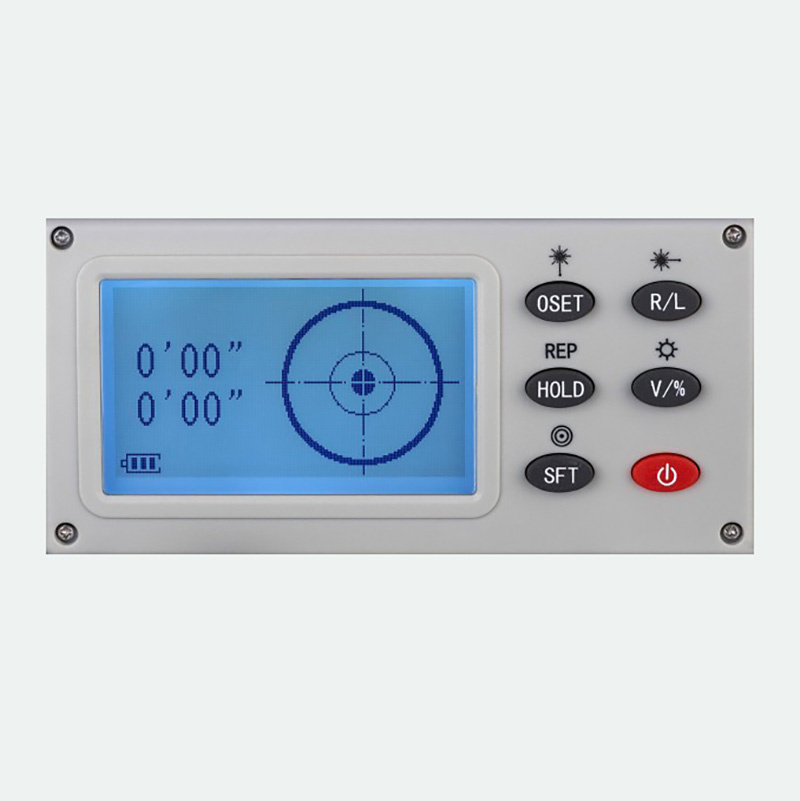

This is what you call user-friendly: Simple and precise levelling in both X and Y axes without the need for tedious turning of the instrument using the electronic base level in the display.

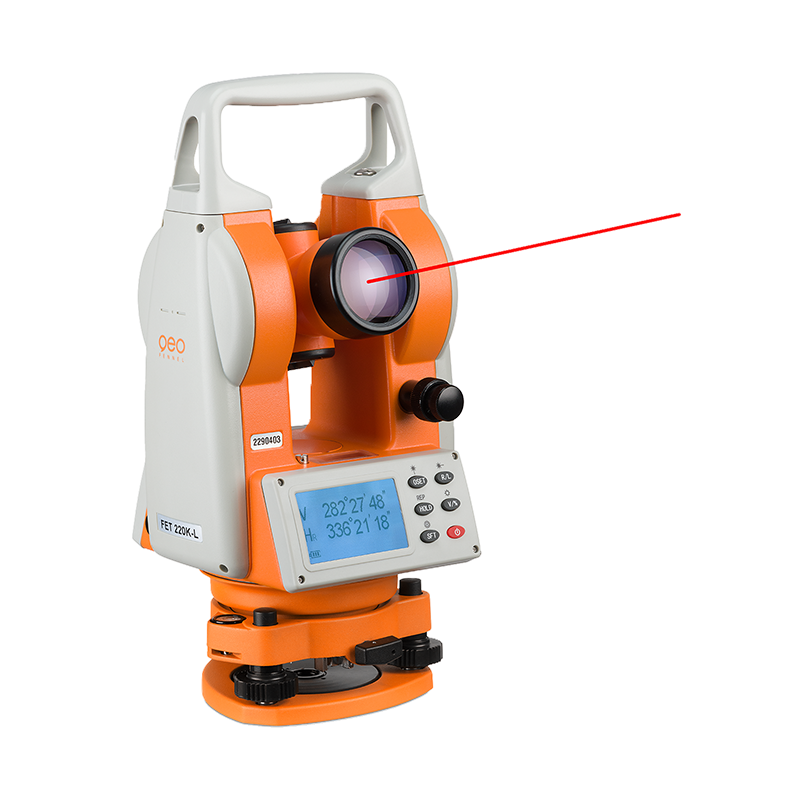

Helpful: Coaxial laser beam integrated in the telescope and can be focussed on the target.
Measurement reliability: 2-axis compensator of the target and transverse axis for automatic correction of small residual inclinations of the displayed vertical angles.

Features

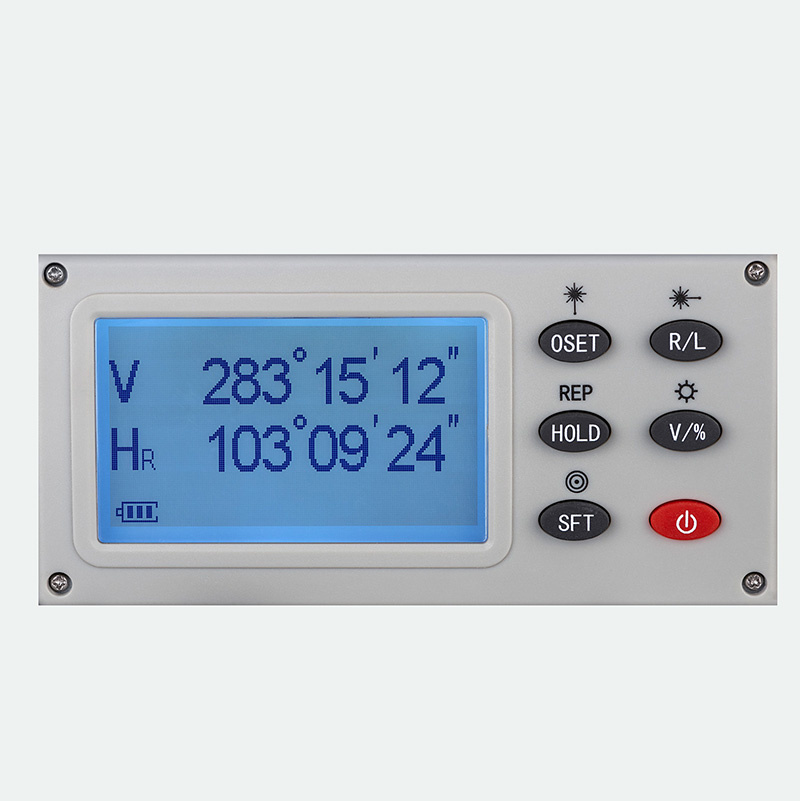

- Large, easy-to-read display on both sides
- Laser plumb for easy alignment above ground point
- Illumination of telescope field of view and display
- Horizontal circle: Hold function, 0 position at any position, clockwise or anticlockwise reading
- Vertical circle: reading in gon / degrees / per cent

Features: "FET 220K-L"
Dust / water protection: IP 54
Laser plummet Laser class: 2
Weight: 4.2 kg
Smallest measured value: 1" (0.2 mgon)
Accuracy: 2" (0.6 mgon)
Laser plummet / tolerance: ± 1.5 mm at 1.5 m
Tribrach: detachable
Max. Visibility: 180 m
Laser Pointfinder: focusable
Compensator: 2-axis compensator
Bubble level: 30" / 2 mm
Measuring units: 400 gon / 360°
Laser class: 2
Weight (device only): 4.2 kg
Angle measurement: absolute encoder
Shortest target range: 1.5 m
Telescope magnification: 30 x
Tolerance to optical axis: 5"
Lens diameter: 45 mm
Circular bubble: 8' / 2 mm
Temperature range: -20° to +50°C
Operating time: 10 h
Power supply: NiMH
Beam diameter: 6 mm / 100 m
