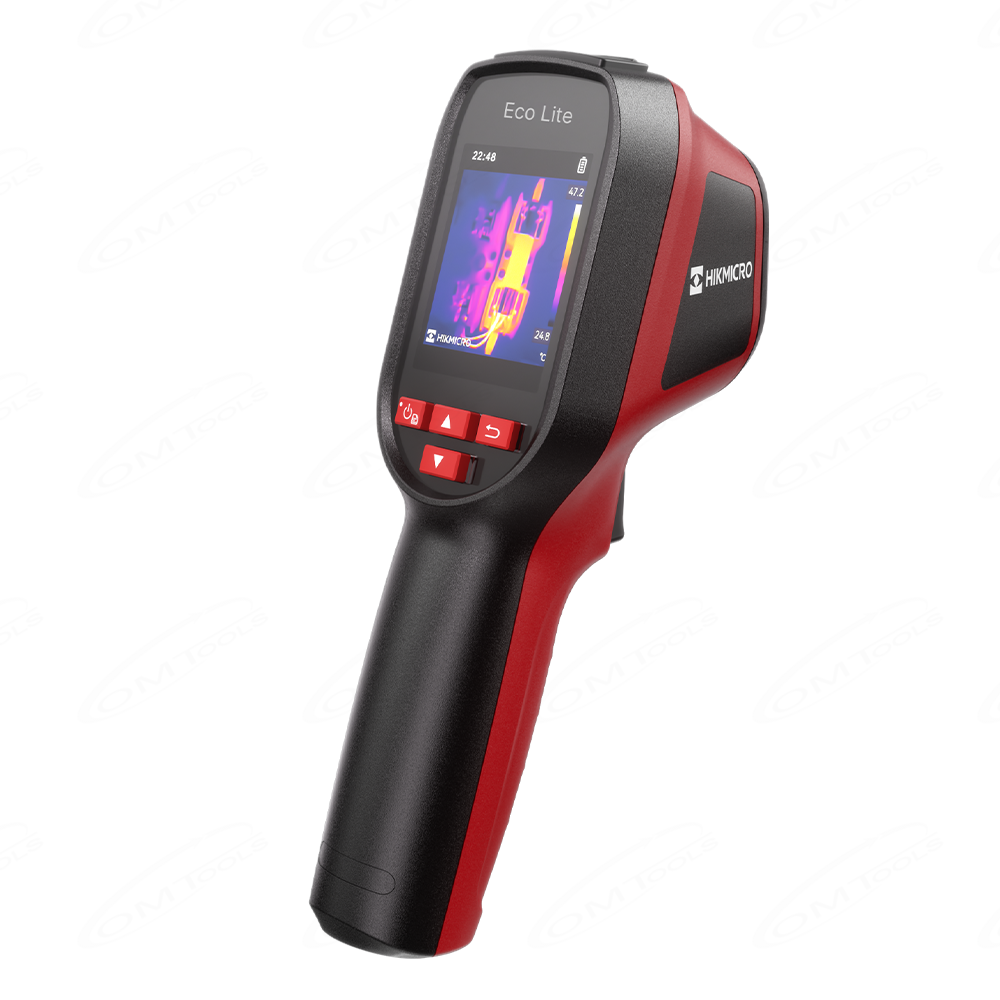

HIKMICRO Eco Lite thermal imaging camera with 96 x 96 IR resolution
- Brand:
- HIKMICRO
- Article number:
- 1450974
- EAN number:
- 6974004648831
- Availability:
- In stock (10)
€99,00
Excl. tax
Eco Lite thermal imaging camera with 96 x 96 IR resolution
Hikmicro Eco Lite NEW
The latest thermal imaging camera from Hikmicro, designed for DIY enthusiasts and DIY projects, freelancers who check small fuse boxes or underfloor heating systems.
With the Eco Lite, you can quickly see the temperature (+/- 2%) around the point you are aiming at using the thermometer mode.
| IR Resolution | 96 × 96 (9,216 pixels) |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
|
Field of View (FOV)
|
50° × 50° |
|
Spatial Resolution (IFOV)
|
8.89 mrad |
| Focus Mode | Focus Free |
| ODE | Yes |
| Distance to Spot Ratio (D:S) | 15:1 |
| Min. Focus Distance | 0.1m (0.33 ft) |
| Image Display | 240 × 320 Resolution, 2.4”LCD Screen |
| Image Modes | Thermal |
| Color Palettes |
White Hot, Black Hot, Rainbow, Ironbow, Blue Yellow
|
| Color Alarm | Above alarm , Below Alarm |
| Object Temperature Range | Range 1: -20°C to 150°C Range 2: 100℃ to 550°C |
| Accuracy | Max (±2°C, ±2%) at ambient temperature 25°C and object temperature above 0°C |
| Measurement Tools | Center Spot, Max Spot, Min Spot |
|
Level and Span Mode
|
Auto |
| Thermometer Mode | Yes |
| Storage Media | Built-in 80M |
| Image Storage Capacity |
Approx. 500-1,000 Images (Actual storage consumption may vary based on scene complexity)
|
| USB Interface |
USB Type-C
|
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 14 hours |
| Battery Charging Time |
Approx. 3 hours fully charged(Adapter Output：5 V 2 A)
|
|
Protection Level
|
IP54 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -10 °C to 50 °C |
| Storage Temperature Range | -40 °C to 70 °C |
| Relative Humidity | < 95% non-condensing |
| Weight |
Approx. 228 g
|
| Dimension |
196 × 59× 78 mm
|
| Tripod Mounting | UNC ¼”-20 |
