OMTools Ball inclinometer/Level, angle indicator 25°-0-25° dimensions 180x50x15,5 mm
- Brand:
- OMTools
- Article number:
- 1450770
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€129,00
Excl. tax

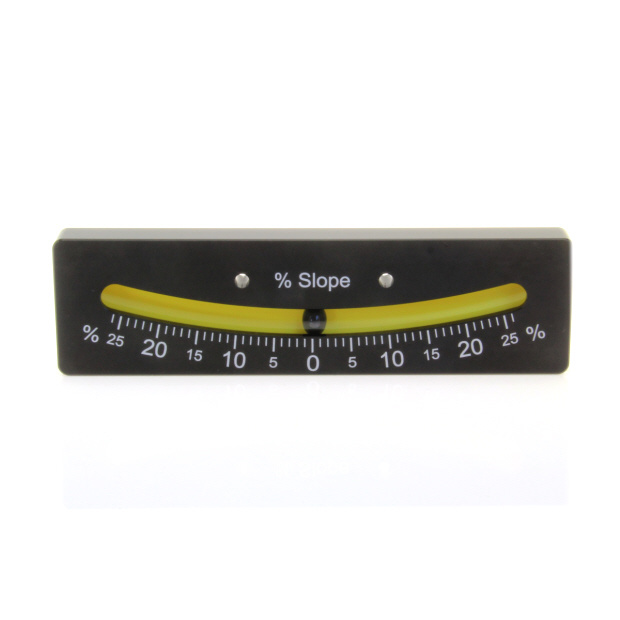

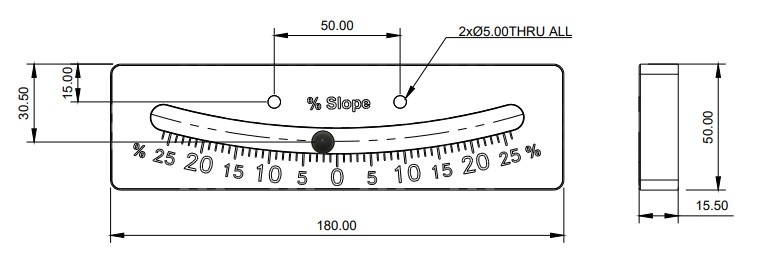

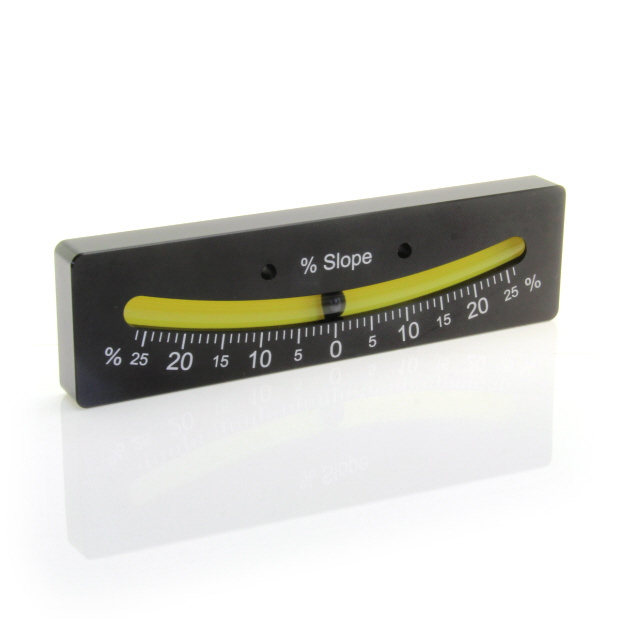

Ball inclinometer/Level, angle indicator 25°-0-25° dimensions 180x50x15,5 mm
OMTools Ball Inclinometer
Ball Inclinometer Tiltmeter, ±25°
A high quality ball inclinometer for indicating angle over the range of ±25°.
A solid machined Aluminium housing gives the unit exceptional strength and durability.
The glass vial is manufactured and filled in our clean room and the indicating ball is a precision ground black ceramic ball.
The cleanliness of the vial, and the precision ceramic ball ensure the angle is displayed accurately and that the ball does not get stuck and give false readings.
Features
- Solid machined Aluminium housing
- Engraved markings filled white
- Precision vial with black ceramic ball 7 mm
- Range ±25 Degrees
- Wide temperature range -20 to 60°C
- Waterproof, suitable for outdoor use
- weight, 315 gram
Applications
- Off road vehicle tilt monitoring
- Grass cutting machinery
- Excavators and loaders
- Crane boom angle measurement
- Hospital beds
|
Parameter |
Value | Unit |
| Length | 180 | mm |
| Range | ±25° | - |
| Resolution | 2.5° | - |
| Accuracy | 10% | - |
| Height | 15.5 | mm |
| Width | 50 | mm |
| Measuring Type | Ball | - |
| Case Material | Aluminium | - |
| Vial Material | Glass | - |
| Mounting Method | Screw fixing or VHB tape | - |
| Ball Diameter | 7 | mm |
| Expansion Chamber | No | - |
| Light | none | - |
