3D Liner 4V Green crossline laser with 5 lines
The robust self-leveling cross line laser ADA 3D Liner 4V Green
The 3D Liner 4V Green has bright laser lines. Thanks to its laser lines, the correct position
can be determined quickly and accurately. The self-leveling pendulum system ensures
a pure measurement with an accuracy of 2 mm at 10 m. Outside the leveling range the laser lines
start flashing to prevent measurement errors. Thanks to the handy transport lock, the inside work
is not damaged during transport. The 3D Liner 4V has a degree ring and fine adjustment.
Because of the high quality and the correct accuracy, this line laser is ideal for the professional.
As a professional you always want to deliver the highest quality. This is no problem with this line laser.
Accuracy: 2 mm / 10 meters
Range: 35 meters *
Range with receiver: 70 meters *

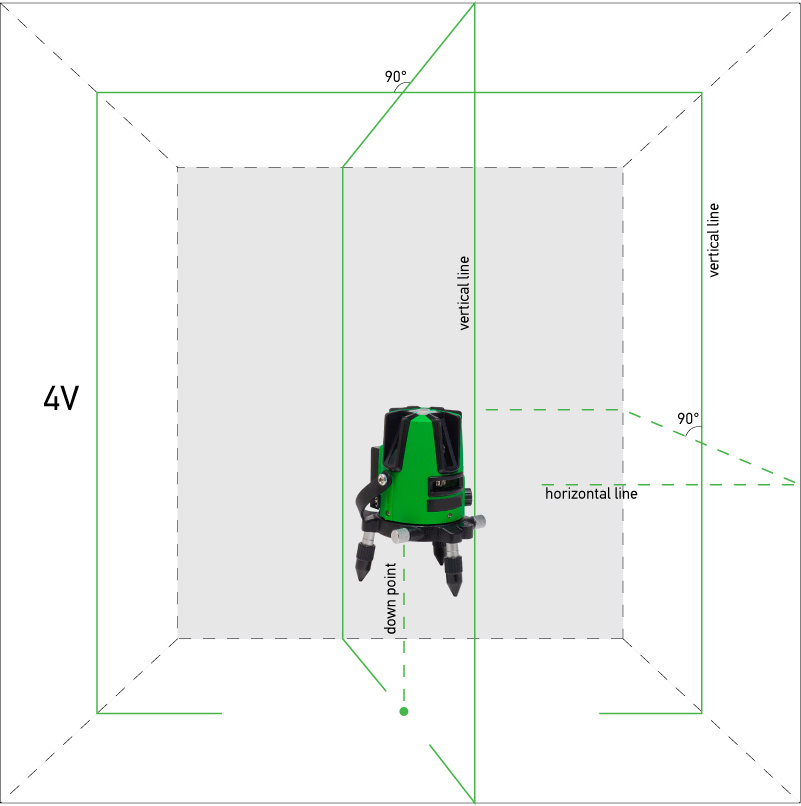

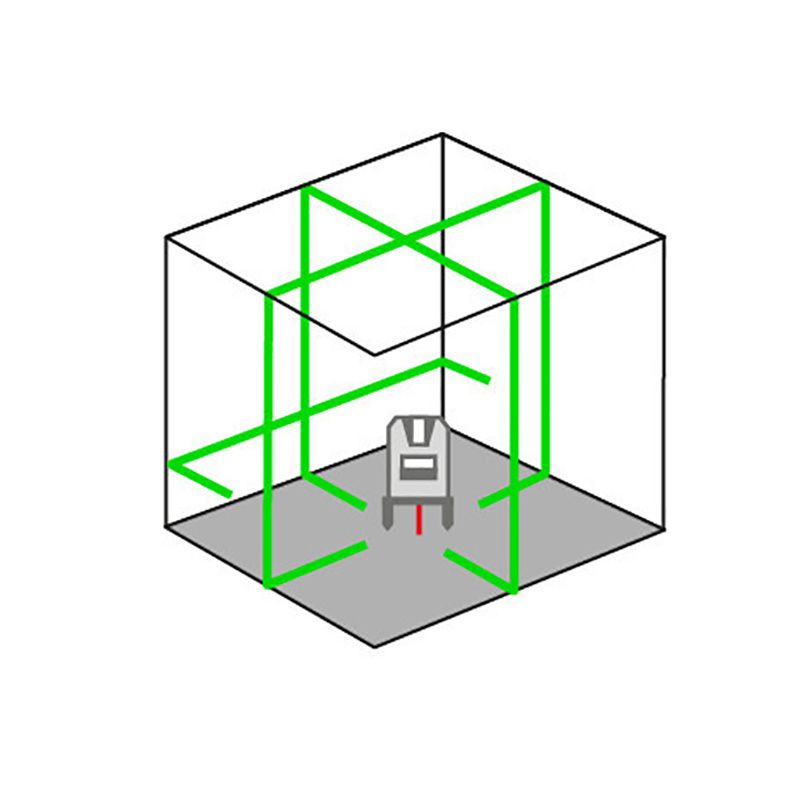

Laser lines: 1x horizontal, 4x vertical, 1x lead point
Switching lines on individually: Yes
Laser diode: Class 2, 532 nm
Leveling range: 3 degrees
Working hours per battery / battery (s): 18 hours *

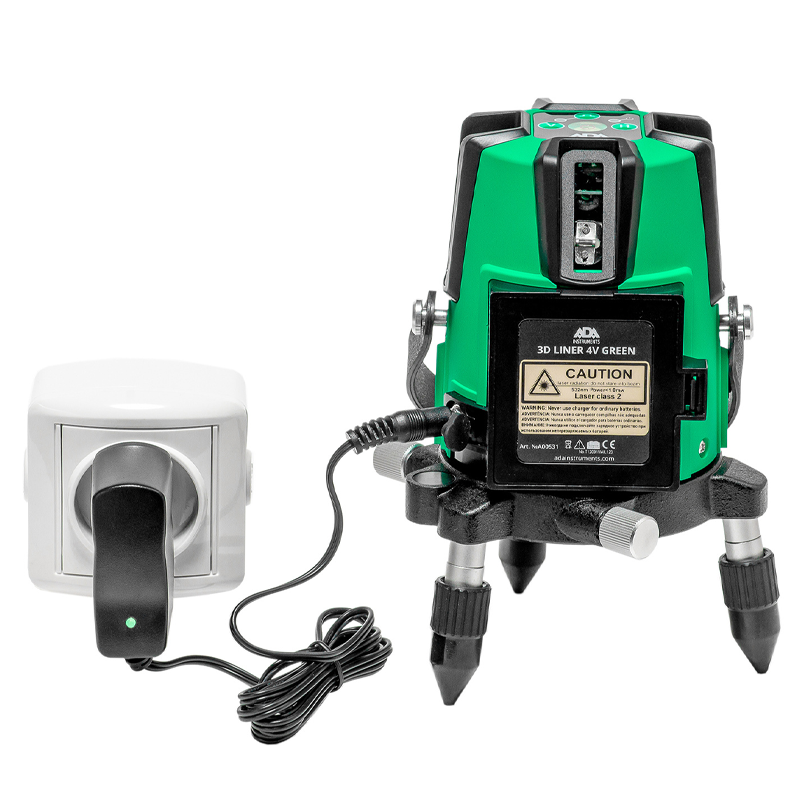

Power supply: Li-Ion Battery / 4x AA Alkaline / mains power
Working temperature: -10 ° C to 40 ° C
Weight: 900 gr
Connection: 5/8 "
*in the most favorable conditions
Scope of supply:
- ADA 3D LINER 4V Green

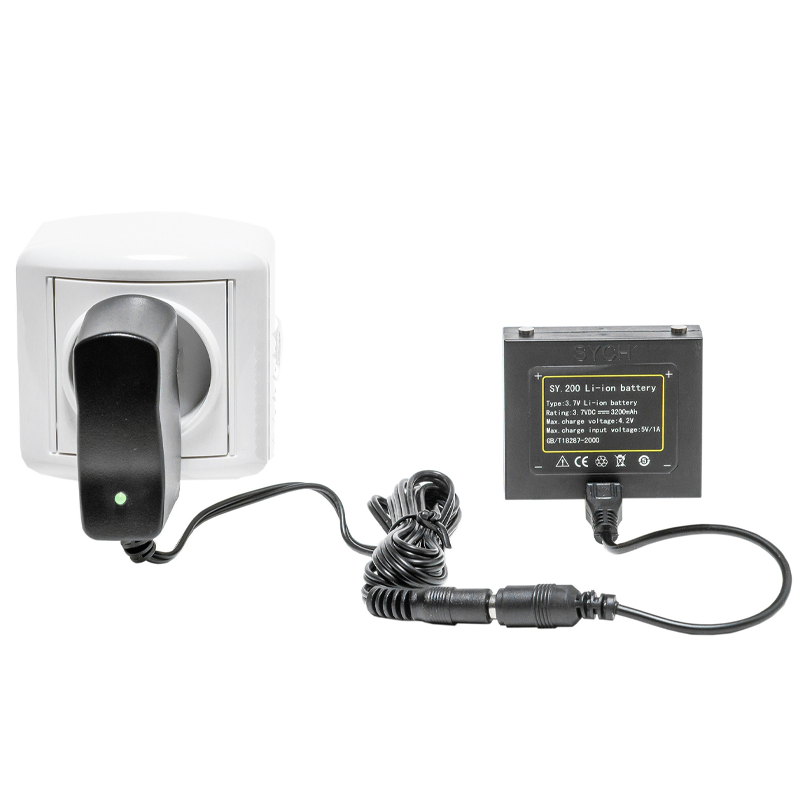

- Lithium-Ion battery
- Tripod adapter
- Target plate
- Laser glasses
